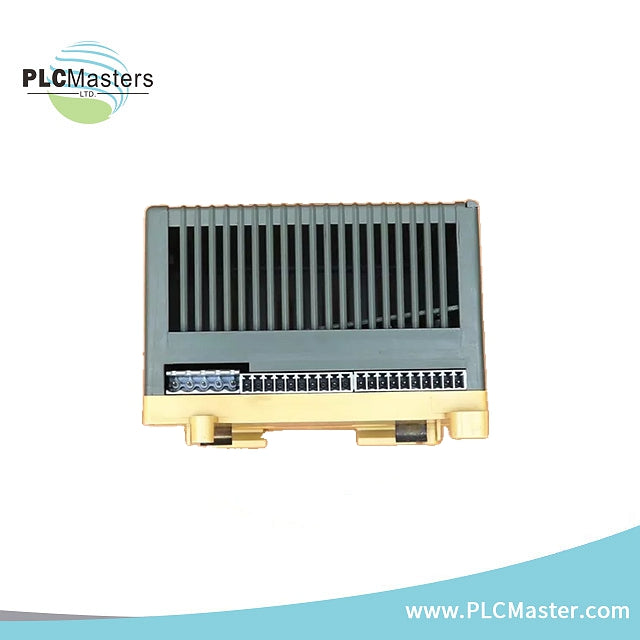

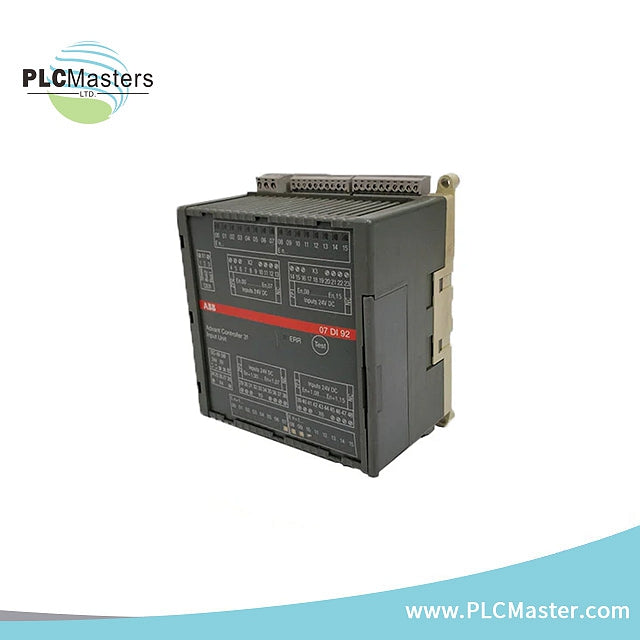

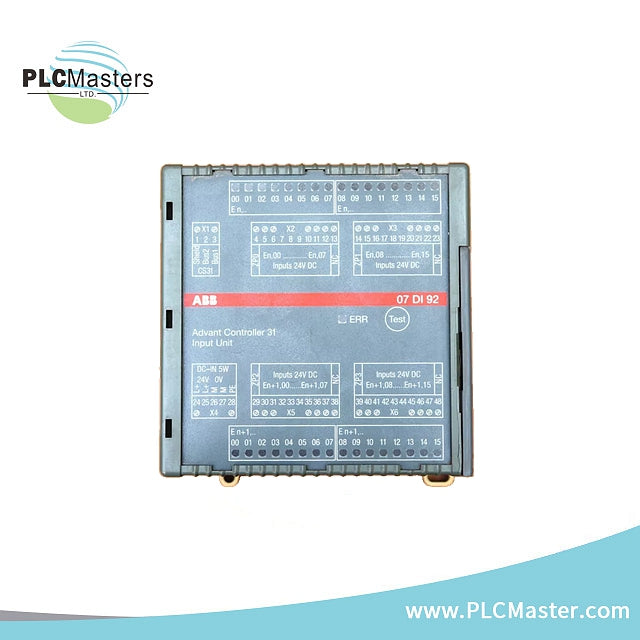

ABB 07DI92 07 DI 92 Digital I/O Module

ABB 07DI92 07 DI 92 Digital I/O Module

  • 1000 In stock
  • Manufacturer: ABB

  • Product No.: 07DI92

  • Condition: In stock

  • Product Type: Digital I/O Module

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 590g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41411718283354,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"07DI92","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ABB 07DI92 07 DI 92 Digital I\/O Module","public_title":null,"options":["Default Title"],"price":20800,"weight":590,"compare_at_price":50900,"inventory_management":"shopify","barcode":"Sweden","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

  • Digital input module for industrial automation
  • Provides 32 digital input channels for discrete signal monitoring

Technical Specifications

General

  • Extended Product Type: 07DI92
  • Product ID: GJR5252400R0101
  • ABB Type Designation: 07DI92
  • Catalog Description: 07DI92, Digital I/O module 32DI
  • Long Description: 07DI92, Digital I/O module 32DI 24VDC, DI:24VDC, 1-wire

Dimensions

  • Width: 120 mm
  • Height: 140 mm
  • Length: 85 mm
  • Weight: 0.59 kg

Environmental

  • Operating Temperature: 0 ... +55 °C
  • Storage Temperature: -25 ... +75 °C
  • Maximum Operating Altitude: 2000 m

Additional Information

  • Cable Cross-Section: 0.08 ... 1.5 mm²
  • Fieldbus Interface Type: CS31 Slave
  • Degree of Protection: IP20
  • Mounting: DIN Rail (TH35-15 or TH35-7.5)
  • Number of Digital Inputs DC 24V: 32
  • Primary Voltage: 24 V DC
  • Terminal Type: Screw Terminals, Pluggable
  • Serial Port 1 Type: RS-485, CS31
  • RoHS Status: No declaration needed

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
