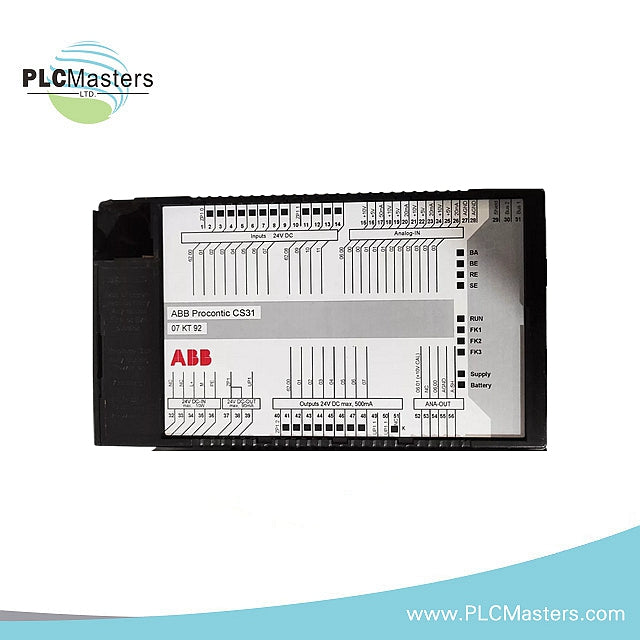

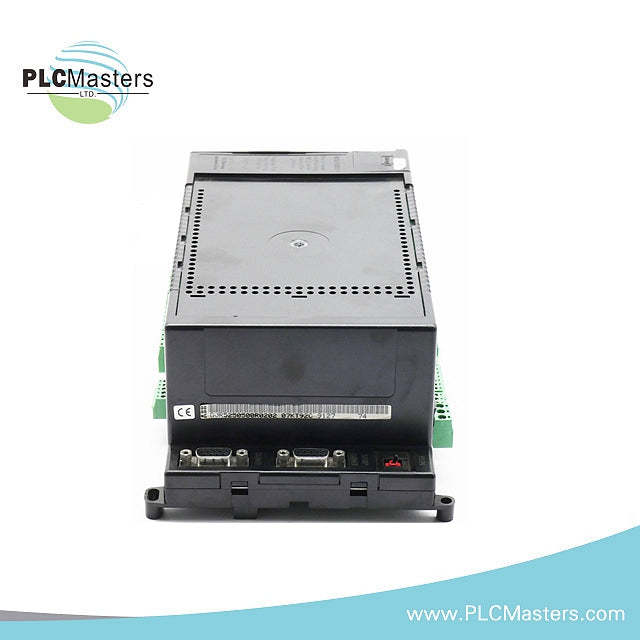

ABB 07KT92C GJR5250500R0202 07 KT 92 Central Unit

ABB 07KT92C GJR5250500R0202 07 KT 92 Central Unit

  • 1000 In stock
  • Manufacturer: ABB

  • Product No.: GJR5250500R0202

  • Condition: In stock

  • Product Type: Central Unit

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41447030030426,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"GJR5250500R0202","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ABB 07KT92C GJR5250500R0202 07 KT 92 Central Unit","public_title":null,"options":["Default Title"],"price":15000,"weight":1000,"compare_at_price":38000,"inventory_management":"shopify","barcode":"Sweden","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

General Information

  • Product ID: GJR5250500R0202
  • ABB Type Designation: 07KT92
  • Catalog Description: 07KT92: AC31 S90, PLC (PC331), 24V DC SUPPLY 20 BIN I/O, 4/2 ANA. I/O, 2 SER. INTERF.
  • Long Description: 20 BIN I/O, 4/2 ANA. I/O, 2 SER. INTERF. 07KT92 COMPACT PLC, 24V DC SUPPLY

Ordering

  • Minimum Order Quantity: 1 piece

Dimensions

  • Product Net Weight: 1 kg

Environmental

  • Ambient Air Temperature:
    • Operation: 0 – +55 °C
    • Storage: -25 – +75 °C
  • RoHS Status: No declaration needed

Additional Information

  • Analog Inputs: 4
  • Analog Outputs: 2
  • CS31-Bus: 1
  • Maximum Hardware Counter Input Frequency: 10 kHz
  • Maximum Number of Analog I/Os: 224 AI, 224 AO
  • Maximum Number of Digital I/Os: 1000
  • Medium Description: 07KT92, STANDARD VERS.
  • Memory Size User Data: 60 kB
  • Memory Size User Program: 60 kB
  • Memory Type User Data: Flash EPROM
  • Memory Type User Program: Flash EPROM, non-volatile RAM, SMC
  • Number of Analog Configurable I/Os: 0
  • Number of Digital Inputs DC 24V: 12
  • Number of Digital Outputs DC 24V: 8
  • Number of Hardware Counters: 1
  • Order Multiple: 1 piece
  • Output Current: 0.5 A
  • Output Voltage (Uout): 24 V DC
  • Parallel Extension: 1
  • Primary Voltage: 24 V
  • Product Main Type: 07KT92
  • Product Name: Distributed Automation PLC
  • Programming Software: PC331
  • Real-time Clock: Yes
  • Serial Port 1 Type: RS232 / Programming
  • Serial Port 2 Type: RS232 / ASCII
  • Speed for 1000 instructions (65% Logic, 35% Word): 0.7 ms
  • Temperature Class Default: --
  • Two Speed Motor: No

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
