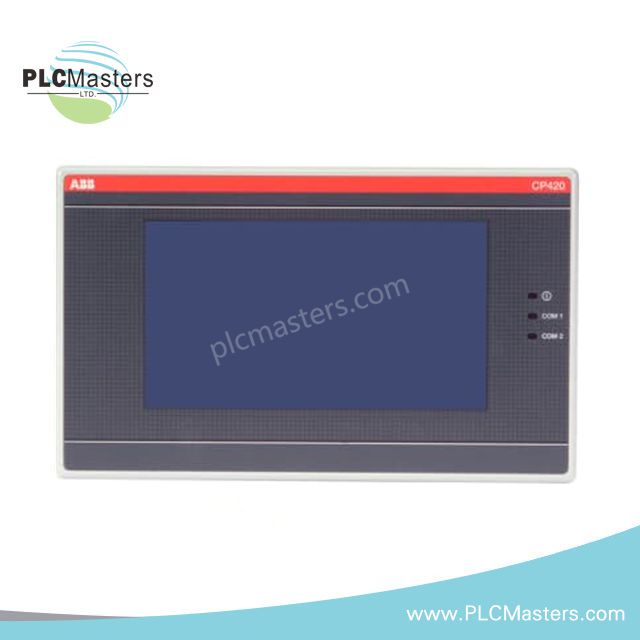

ABB CP420B 1SBP260182R1001 Control Panel
$254.00
$520.00
What our customer's think
Reviews
Description
General Information
- Extended Product Type: CP420B
- Product ID: 1SBP260182R1001
- ABB Type Designation: CP420B
- EAN: 3471522601827
- Catalog Description: CP420B: CP400, control panel 4.7” touchscreen with 16 blue levels
- Long Description: CP420B Control Panel 4.7” Touchscreen with 16 blue levels
Additional Information
-
Ambient Air Temperature:
- Operation: 0 ... +50 °C
- Storage: -10 ... +60 °C
- Battery Type: Portable
- Communication: Depends on the driver
- Communication Interface: None
- Communication Speed: 4.8 ... 187.5 kBd
- Country of Origin: Taiwan (Chinese Taipei)
- Customs Tariff Number: 85381000
- Data Sheet: 1SBC159107L0202
- Declaration of Conformity - CE: 1SBD240577C1000
- Display Type: STN Touch
- Environmental Information: Environmental Certificate: CP420B
- Fieldbus Interface Type: Modbus RTU, AC500 Modbus ASCII, others (contact for details)
- Frame Size: Undefined
- Fuse Size: 3.6 x 10_MMTx
- Fuse Type: SLEEK.36ESr
- GSD-file for PROFIBUS Communication: No
- Gross Weight: 0.86 kg
-
Instructions and Manuals:
- 1SBC159102M0201
- 1SBC159106M0202
- Invoice Description: CP420B: CP400, control panel 4.7” touchscreen with 16 blue levels
- Made To Order: No
- Memory Size User Program: 4000 kB
- Memory Type User Program: 4 MB ROM
- Minimum Order Quantity: 1 piece
- Mounting Position: 0 to 135 °
- Mounting Type: Front face
- Mounting on DIN Rail: No
- Number of Characters Per Line: 30
- Number of Display Lines: 16
- Number of Function Keys: 0
- Number of LEDs: 0
- Operating Mode: Offline/Online
- Order Multiple: 1 piece
- Power Consumption (@Pcons): 12 V·A
- Power Supply: 24 V DC
- Product Main Type: CP420
- Product Name: Control Panel
- Product Net Weight: 0.47 kg
- Product Type: PLC-CP400
- Profibus: No
- Programming Software: CP400 Soft
- Quote Only: No
- Real-time Clock: Yes
- Release Type: V10.10.10
- RoHS Information: RoHS certificate for CP410M, CP415M, CP420B, CP430B, CP430BP, CP430BP-ETH, CP430T, CP430T-ETH, CP435T, CP435T-ETH, CP440C, CP450T, CP450T-ETH, TK401, TK402, TK403, TK404, TK405
- Screen Color: 16 blue levels
- Screen Resolution: 240 x 128 pixels
- Screen Size: 16:9 wide screen, 4.7 in
- Screen Type: STN blue, CCFL backlight, touchscreen
- Security: Password protection with 9 user levels
- Selling Unit of Measure: Piece
- Serial Port 1 Type: RS232/RS485
- Serial Port 2 Type: RS422/RS485
- Service Life: 50,000 hours
- Short Description: CP420B Control Panel 4.7” Touchscreen with 16 Blue Levels
- Short-Circuit Protective Devices: gG Type Fuses Integrated
- Software Function: Alarm management, trends, macro & ladder, sub-screen
- Stocked At (Warehouses): Menden, Germany
- Supply Voltage: 20.4 ... 27.6 V DC
- UL Certificate: NRAQ.E240320
- USB Ports: No USB ports
- Viewing Area Height: 61 mm
- Viewing Area Length: 111 mm
