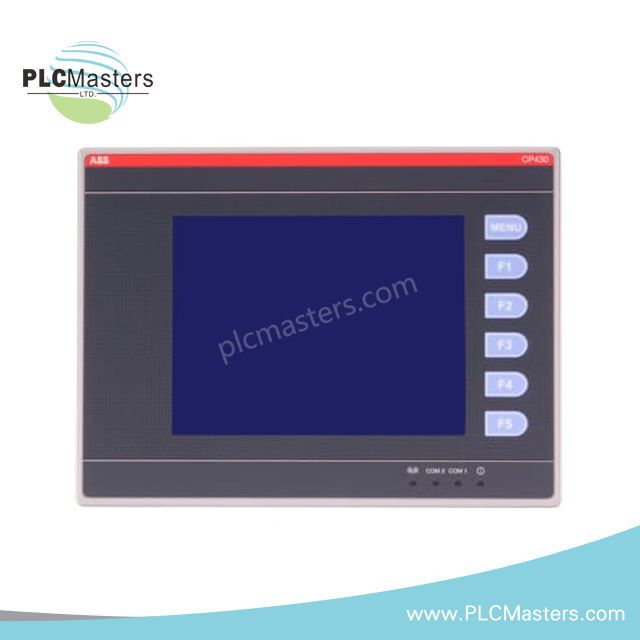

ABB CP430BP 1SBP260192R1001 Control Panel
$351.00
$520.00
What our customer's think
Reviews
Description
General Information:
- Extended Product Type: CP430BP
- Product ID: 1SBP260192R1001
- ABB Type Designation: CP430BP
- EAN: 3471522601926
- Catalog Description: CP435 T Control Panel 7” TFT Touch Screen
- Long Description: CP430 BP Control Panel with 1 menu, 5 defined keys, and a 5.7” STN Touch Screen, featuring 16 blue levels.
Additional Information:
-
Ambient Air Temperature:
- Operation: 0 ... +50 °C
- Storage: -10 ... +60 °C
- Battery Type: Portable
- Communication Interface: Depends on Driver
- Communication Speed: 4.8 ... 187.5 kBd
- Country of Origin: Taiwan (Chinese Taipei)
- Customs Tariff Number: 85371091
- Fieldbus Interface Type: Modbus RTU, AC500_Modbus, ASCII, and others (contact for details)
- Frame Size: Undefined
- Fuse Size: 5 x 20_MMTx
- Fuse Type: BEL.5TT 1.6-R
- Gross Weight: 1.25 kg
- Memory Size (User Data): 512 kB
- Memory Size (User Program): 4000 kB
- Memory Type (User Data): 512 kB RAM
- Memory Type (User Program): 4 MB ROM
- Real-time Clock: Yes
- Power Supply: 24 V DC
- Power Consumption: 20 V·A
- Product Main Type: CP430
- Product Name: Control Panel
-
Product Net Dimensions:
- Depth/Length: 60 mm
- Height: 145 mm
- Width: 195 mm
- Product Net Weight: 0.86 kg
-
Screen Specifications:
- Type: STN blue, CCFL backlight, touch screen
- Color: 16 blue levels
- Resolution: 320 x 240 pixels
- Size: 5.7 inches (4:3 ratio)
-
Viewing Area:
- Height: 88.4 mm
- Length: 117.2 mm
- Security: Password protection with 9 user levels
-
Serial Ports:
- Port 1: RS232/RS485
- Port 2: RS232/RS422/RS485
-
USB Ports:
- Port 1: Host, version 2.0
- Port 2: Device, version 2.0
- Service Life: 50,000 hours
- Short-Circuit Protective Devices: gG Type Fuses Integrated
Software Features:
- Functions: Alarm management, recipe management, trends, macro & ladder, sub-screen.
Certifications & Compliance:
- RoHS Certificate: For CP410M, CP415M, CP420B, CP430B, CP430BP, CP430BP-ETH, CP430T, CP430T-ETH, CP435T, CP435T-ETH, CP440C, CP450T, CP450T-ETH.
- UL Certificate: NRAQ.E240320
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Business
Mounting and Configuration:
- Mounting Position: 0 to 135°
- Mounting Type: Front face
- Mounting on DIN Rail: No
Other Specifications:
- Operating Mode: Offline, Online
- Minimum Order Quantity: 1 piece
- Selling Unit of Measure: Piece
- Product Type: PLC-CP400
- Programming Software: CP400 Soft
- Quote Only: No
- UNSPSC: 32151703
