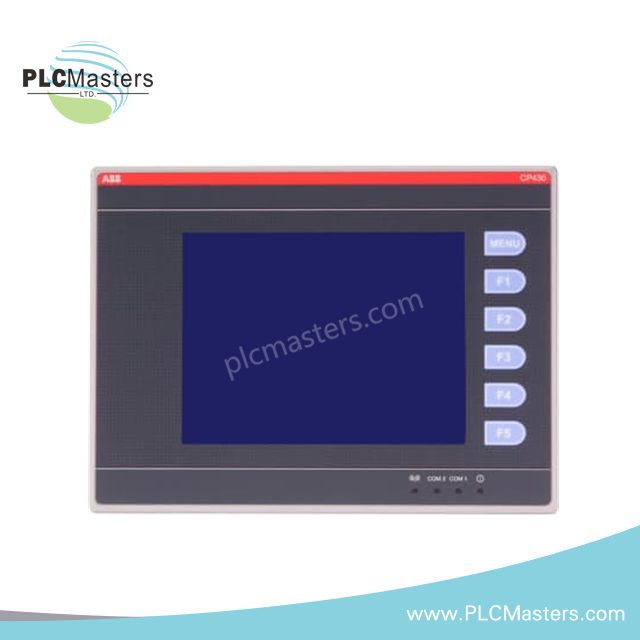

ABB CP430BP-ETH 1SBP260194R1001 Control Panel
$351.00
$520.00
What our customer's think
Reviews
Description
General Information
- Product Name: CP430BP-ETH Control Panel
- Product ID: 1SBP260194R1001
- ABB Type Designation: CP430BP-ETH
- Catalog Description: CP430 T Control Panel 5.7” TFT Touch Screen
- EAN: 3471522601940
Technical Specifications
- Display: 5.7” STN Touch + 5 defined keys
- Display Resolution: 320 x 240 pixels
- Screen Color: 16 Blue Levels
- Power Supply: 24 V DC
- Power Consumption: 20 V·A
-
Ambient Temperature:
- Operating: 0°C to +50°C
- Storage: -10°C to +60°C
- Service Life: 50,000 hours
- Mounting Position: 0° to 135°
- Mounting Type: Front face
- Memory Size User Data: 512 kB
- Memory Size User Program: 4 MB ROM
- Memory Type User Data: 512 kB RAM
Communication
- Communication Interface: Ethernet, RS232/RS485, RS232/RS422/RS485
- Communication Speed: 4.8 to 187.5 kBd
- Fieldbus Interface Type: Modbus RTU, Modbus ASCII, others
- Software Functionality: Alarm management, Recipe management, Trends, Macro & Ladder, Sub-screen
Security and Certifications
- Security: Password protection with 9 user levels
- RoHS Compliance: RoHS certificate available
- UL Certificate: NRAQ.E240320
- Declaration of Conformity: CP430 BP, BP-ETH, T, T-ETH
Physical Specifications
-
Dimensions:
- Width: 195 mm
- Height: 145 mm
- Depth: 60 mm
-
Viewing Area:
- Height: 88.4 mm
- Length: 117.2 mm
- Gross Weight: 1.34 kg
- Net Weight: 0.86 kg
Additional Information
- Battery Type: Portable
- Country of Origin: Taiwan (Chinese Taipei)
- Customs Tariff Number: 85371091
- Fuse Size: 5 x 20 MMTx
- Fuse Type: BEL.5TT 1.6-R
Software and Programming
- Programming Software: CP400 Soft
- Real-time Clock: Yes
- Serial Port 1 Type: RS232/RS485
- Serial Port 2 Type: RS232/RS422/RS485
Certifications and Compliance
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- UNSPSC: 32151703
