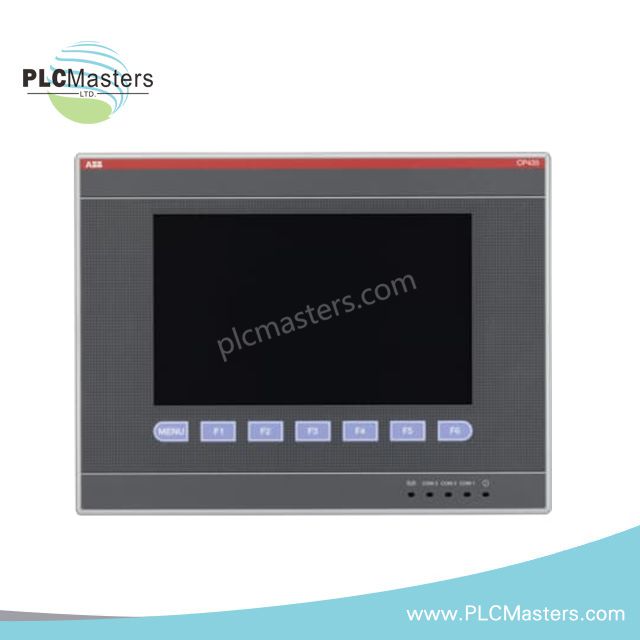

ABB CP435T 1SBP260193R1001 Control Panel
$268.00
$520.00
What our customer's think
Reviews
Description
General Information
- Extended Product Type: CP435T
- Product ID: 1SBP260193R1001
- ABB Type Designation: CP435T
- EAN: 3471522601933
- Catalog Description: CP430 BP-ETH Control Panel 5.7” STN Touch
- Long Description: CP435 T Control Panel with 1 menu, 6 defined keys, and a 7” TFT Touch screen with 64K colors.
Additional Information
-
Ambient Air Temperature:
- Operation: 0 ... +50 °C
- Storage: -10 ... +60 °C
- Battery Type: Portable
- Communication Interface: Dependent on Driver
- Communication Speed: 4.8 ... 187.5 kBd
- Country of Origin: Taiwan (Chinese Taipei)
- Customs Tariff Number: 85371091
- Fieldbus Interface Type: Modbus RTU, Modbus ASCII, others (contact us)
- Frame Size: Undefined
- Fuse Size: 5 x 20_MMTx
- Fuse Type: SLEEK.36ESr
- Gross Weight: 1.31 kg
- Memory Size User Data: 512 kB
- Memory Size User Program: 8,000 kB
- Memory Type User Data: 512 kilobyte RAM
- Memory Type User Program: 8 MB ROM
- Operating Mode: Off-line, On-line
- Power Consumption: 20 V·A
- Power Supply: 24 V DC
- Product Type: PLC-CP400
- Programming Software: CP400 Soft
- Real-time Clock: Yes
- Screen Color: 64K colors
- Screen Resolution: 800 x 480 pixels
- Screen Size: 16:9 widescreen, 7 in
- Screen Type: TFT color, CCFL backlight, touch screen
- Security: Password protection with 9 user levels
- Serial Port 1 Type: RS232/RS485
- Serial Port 2 Type: RS232/RS422/RS485
-
USB Ports:
- 2 Host Ver. 2.0
- 1 Device Ver. 2.0
- Service Life: 50,000 hours
- Short-Circuit Protective Devices: gG Type Fuses Integrated
- Software Function: Alarm management, recipe management, trends, macros & ladder, sub-screen
-
Viewing Area:
- Height: 92.4 mm
- Length: 153.7 mm
- Mounting Position: 0 to 135 °
- Mounting Type: Front face (DIN Rail mounting not available)
Certifications and Standards
- Declaration of Conformity: CE Certified
- RoHS Certificate: Available for multiple products including CP435T
- UL Certificate: NRAQ.E240320
Environmental & Physical Characteristics
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- Service Life: 50,000 hours
Product Dimensions and Weight:
- Net Depth / Length: 47 mm
- Net Height: 176 mm
- Net Width: 231 mm
- Net Weight: 0.86 kg
