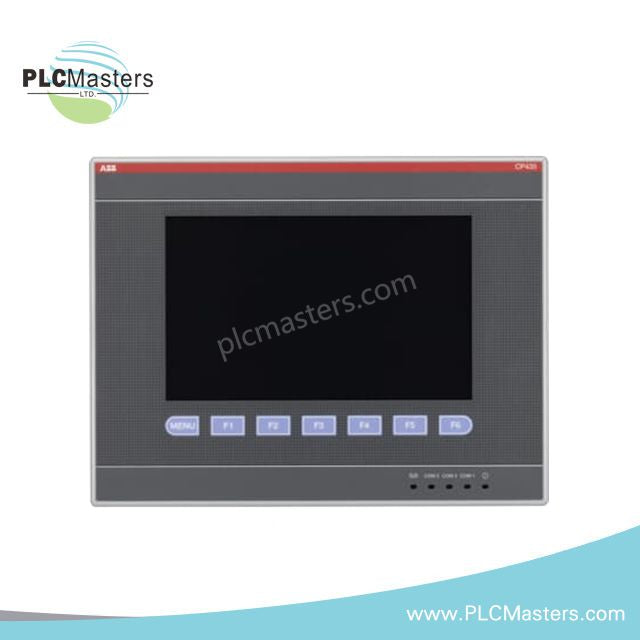

ABB CP435T-ETH 1SBP260197R1001 Control Panel
$317.00
$520.00
What our customer's think
Reviews
Description
Product Overview of CP435T-ETH Control Panel
Product Name: CP435T-ETH
Product ID: 1SBP260197R1001
ABB Type Designation: CP435T-ETH
Catalog Description: 7" TFT Touchscreen Control Panel with Ethernet
Screen: 7” TFT Color Display (64K colors), 800 x 480 resolution
Frame Size: Undefined
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +60°C
Battery Type: Portable
Key Features
-
Memory Size:
- User Data: 512 kB RAM
- User Program: 8 MB ROM
- Communication: Ethernet interface, Modbus RTU, AC500_Modbus, ASCII, and more
- Communication Speed: 4.8 ... 187.5 kBd
- Power Supply: 24 V DC
- Power Consumption: 20 V·A
- Mounting Type: Front face (no DIN rail mounting)
-
Display Characteristics:
- 16:9 wide screen
- CCFL backlight
- 100 characters per line, 60 display lines
- Security: Password protection with 9 user levels
- Service Life: 50,000 hours
-
USB Ports:
- 2 Host USB 2.0
- 1 Device USB 2.0
Technical Details
- Fuses: 5 x 20_MMTx, SLEEK.36ESr
- Country of Origin: Taiwan (Chinese Taipei)
- Customs Tariff Number: 85381000
- Gross Weight: 1.34 kg
- Net Weight: 0.86 kg
-
Dimensions:
- Depth: 47 mm
- Height: 176 mm
- Width: 231 mm
User Interaction
- Function Keys: 6 defined keys
- Operating Mode: Off-line, On-line
- Screen Functionality: Alarm management, recipe management, trends, macro & ladder sub-screens
Other Specifications
-
Serial Ports:
- RS232/RS485
- RS232/RS422/RS485
- Real-time Clock: Yes
- WEEE Category: Small Equipment (No External Dimension More Than 50 cm)
- RoHS Compliance: Yes
