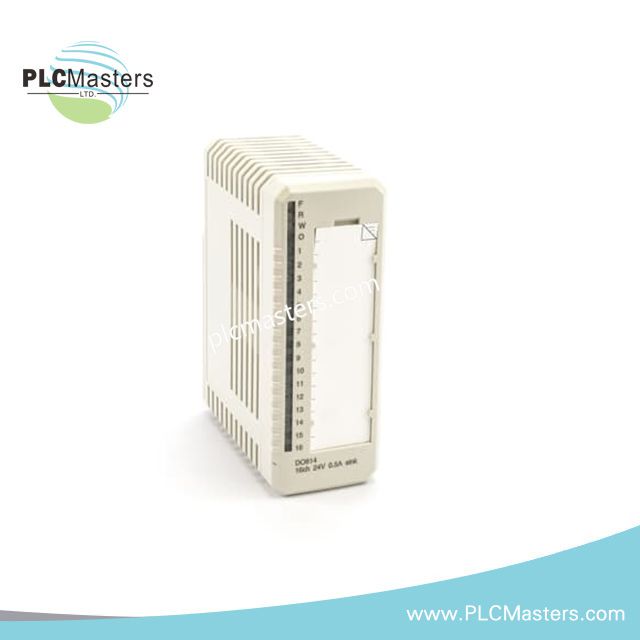

ABB DO814 3BUR001455R1 Digital Output Module
$271.00
$520.00
What our customer's think
Reviews
Description
General Information
- Article Number: 3BUR001455R1
- Type: Digital Output
- Signal Specification: 24 V d.c. (12-32 V d.c.), 0.5 A
- Number of Channels: 16
- Signal Type: Current sinking, current limiting
- HART: No
- SOE: No
- Redundancy: No
- High Integrity: No
- Intrinsic Safety: No
- Mechanics: S800
Detailed Data
- Isolation: Groupwise isolated from ground
- Current Limiting: Short circuit-proof current-limited output
- Maximum Field Cable Length: 600 meters (656 yards)
- Rated Insulation Voltage: 50 V
- Dielectric Test Voltage: 500 V a.c.
- Power Dissipation: Typ. 2.1 W
- Current Consumption (5 V Modulebus): 80 mA
Diagnostics
- Front LEDs: F (Fault), R (Run), W (Warning), O (SP), Channel 1-16 Status
- Supervision: Process voltage (1 per group)
- Status Indication of Supervision: Module Error, Module Warning, Channel error
Environment and Certification
- CE Mark: Yes
- Electrical Safety: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
- Hazardous Location: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
- Marine Certification: ABS, BV, DNV, LR
- Temperature, Operating: 0 to +55 °C (+32 to +131 °F), approvals for +5 to +55 °C
- Temperature, Storage: -40 to +70 °C (-40 to +158 °F)
- Pollution Degree: Degree 2, IEC 60664-1
- Corrosion Protection: ISA-S71.04: G3
- Relative Humidity: 5 to 95%, non-condensing
- Max Ambient Temperature: 55 °C (131 °F), for vertical mounting in compact MTU: 40 °C (104 °F)
- Protection Class: IP20 (IEC 60529)
- Mechanical Operating Conditions: IEC/EN 61131-2
- EMC: EN 61000-6-4, EN 61000-6-2
- Overvoltage Categories: IEC/EN 60664-1, EN 50178
- Equipment Class: Class I (IEC 61140; earth protected)
- RoHS Compliance: DIRECTIVE/2011/65/EN (EN 50581:2012)
- WEEE Compliance: DIRECTIVE/2012/19/EU
Compatibility
- Use with MTU: TU810, TU812, TU814, TU830, TU833, or TU838
- Keying Code: BE
Dimensions
- Width: 45 mm (1.77”)
- Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
- Height: 119 mm (4.7”)
- Weight: 0.18 kg (0.4 lbs.)
