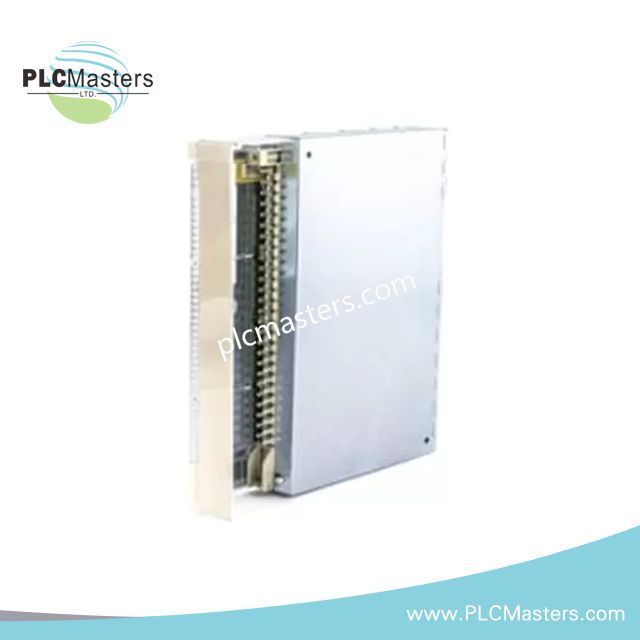

ABB DP640 3BHT300057R1 Rotational Speed Meter Module
$162.00
$500.00
What our customer's think
Reviews
Description
General Information
- Product ID: 3BHT300057R1
- ABB Type Designation: DP640
- Catalog Description: DP640 Rotational Speed Meter Module
- Long Description: DP640 Rotational Speed Meter Module
Product Details
- Medium Description: DP640 Rotational Speed Meter Module
- Product Type: I/O Module
Technical Specifications
-
Input Specifications:
- Supports S600 I/O speed meter inputs, maximum 50 kHz frequency.
- Input current: ±13 mA.
- Voltage levels: 24 V DC or 5 V DC.
-
Functional Features:
- Detects direction using a second speed meter input.
- Overspeed trip logic with a trip signal output.
-
Outputs:
- Solid-state output: 24 V DC.
- Dry contact output: 60 V DC.
-
Isolation:
- Speed meter inputs and solid-state outputs are individually opto-isolated.
Regulatory Compliance
-
RoHS Compliance:
- Exempt under Article 2(4)(c), (e), (f), and (j) of 2011/65/EU (RoHS).
- Reference: 3BSE088609 – EU Declaration of Conformity.
Environmental Information
- RoHS Status: Following EU Directive 2011/65/EU.
- WEEE Category: Category 5 – Small Equipment (No dimension exceeding 50 cm).
- Batteries Included: 0.
Dimensions & Weight
- Depth / Length: 252 mm
- Height: 273 mm
- Width: 40 mm
- Weight: 1.33 kg
