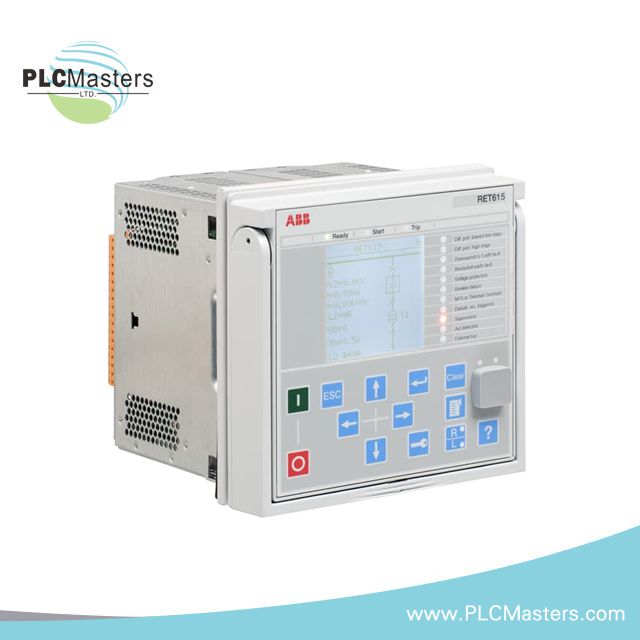

ABB RET615 Transformer Protection and Control Relay

ABB RET615 Transformer Protection and Control Relay

  • 1000 In stock
  • Manufacturer: ABB

  • Product No.: RET615

  • Condition: In stock

  • Product Type: Transformer Protection and Control Relay

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 159g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41514147971162,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"RET615","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ABB RET615 Transformer Protection and Control Relay","public_title":null,"options":["Default Title"],"price":19100,"weight":159,"compare_at_price":54200,"inventory_management":"shopify","barcode":"Sweden","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The RET615 is a transformer protection and control relay designed for two-winding power transformers. It integrates protection, control, measurement, and supervision in a compact unit. Suitable for utility and industrial systems, it features fast differential protection with high inrush stability.

Technical Specifications

  • Protection: Transformer differential, voltage protection, and measurement.
  • Neutral Earthing: Supports high-impedance and low-impedance earth-fault protection.
  • Optional Features: Arc protection, high-speed outputs.
  • Communication: IEC 61850, Modbus, DNP3, IEC 60870-5-103.
  • Time Sync: IEEE 1588 V2 for accurate synchronization.
  • Display: Customizable SLDs on a graphical display.
  • Installation: Withdrawable plug-in unit.
  • Service: Extensive life-cycle support.
    • Net Weight: 0.159 kg
    • Depth / Length: 28 mm
    • Height: 135 mm
    • Width: 67.5 mm

    Features

    We welcome bulk orders and have a minimum order quantity of just one unit.

    Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

    For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

    We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

    We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

    Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
