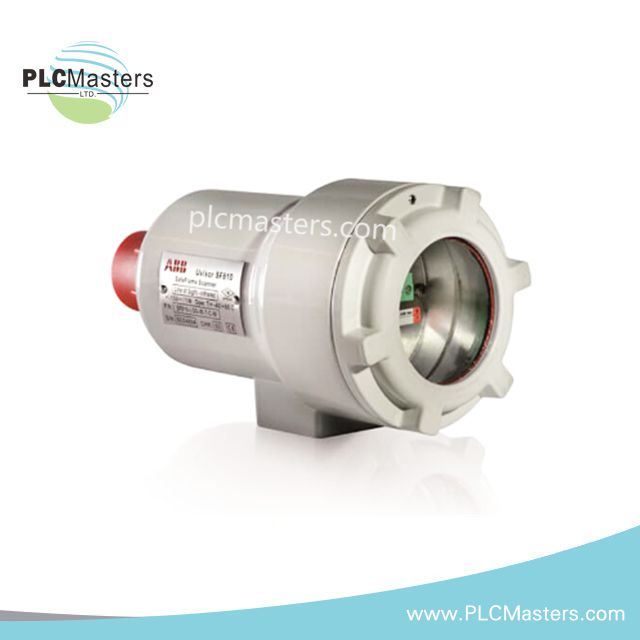

ABB SF810INT-LOS-UVIR-T-L Flame Scanner

Overview

The ABB SF810INT-LOS-UVIR-T-L is a flame scanner from the Uvisor SF810 series, designed for industrial combustion monitoring. It uses advanced UVIR (Ultraviolet and Infrared) dual sensor technology to detect flame presence and quality.

Technical Specifications

• Model Number: SF810INT-LOS-UVIR-T-L

• Type: Flame Scanner

• Manufacturer: ABB

• Sensor Technology: Dual UVIR (Ultraviolet and Infrared) sensors

• Spectral Response:

• UV Sensor: Peak at 280 nm

• IR Sensor: Peak at 920 nm

• Power Supply: Powered by Flame Analysis Unit (FAU810)

• Power Consumption:

• Max 300 mW (single sensor)

• Max 600 mW (dual sensor)

Air Source for Lens Cleaning

• Flow Rate:

• 115 l/min (4 SCFM) for LOS versions

• 400 l/min (14 SCFM) for FOC versions

• Pressure:

• 20 mm H2O (1” W.C.) for LOS

• 300 mm H2O (12” W.C.) for FOC

Operating Temperature

• Fiber Optic Cable:

• Up to 482°C (900°F) for VL and IR

• Up to 350°C (662°F) for UV and UVIR

• Housing: 1” NPT male mounting thread

• Protection Class: IP66/67

Additional Information

• Product Type: Uvisor™ SF810i Multi Fuel Integrated Safe Flame Scanner

• Installation Type: LOS = Scannerhead for Line of Sight

• Spectral Range: UV

• Weight: 1.3 kg
