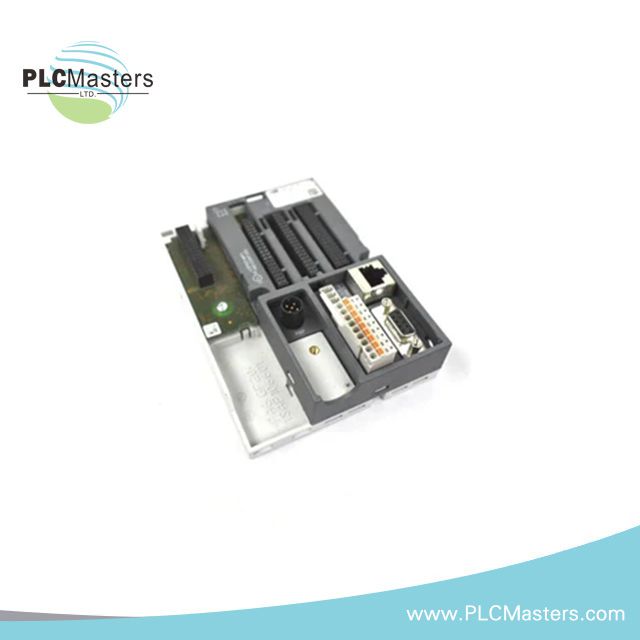

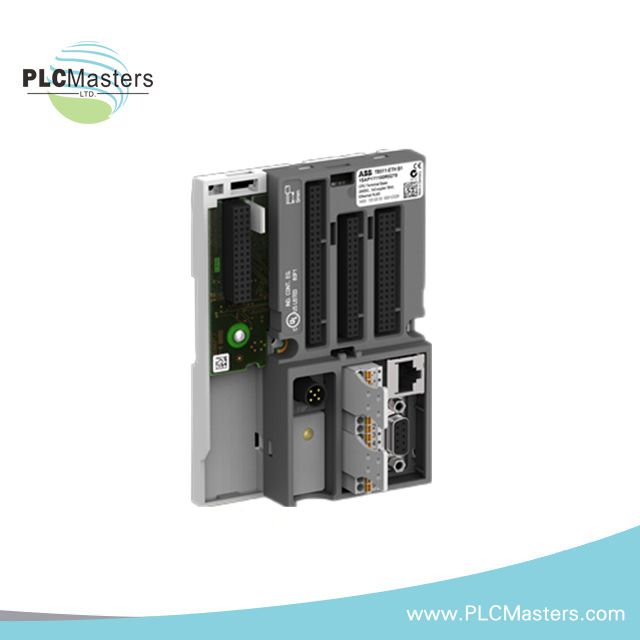

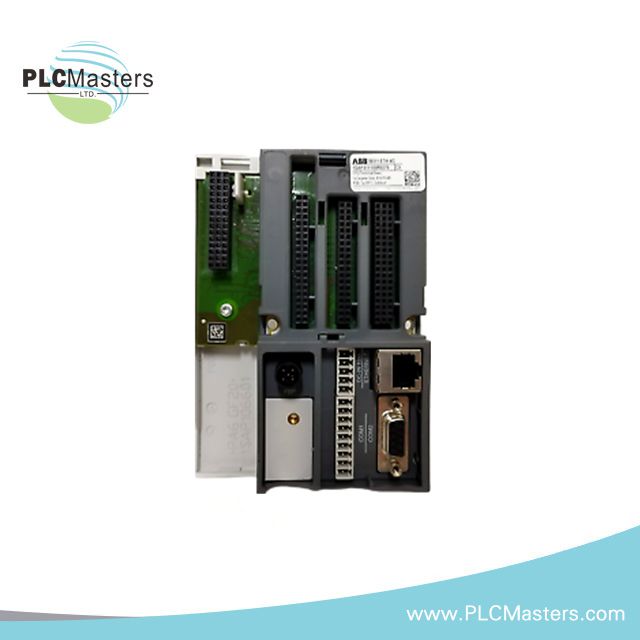

ABB TB511-ETH Terminal Base
$186.00
$542.00
What our customer's think
Reviews
Description
General Information
- Extended Product Type: TB511-ETH
- Product ID: 1SAP111100R0270
- ABB Type Designation: TB511-ETH
- EAN: 4016779680868
- Catalog Description: Terminal base for AC500 V2, 1 slot for communication module, Ethernet interface, and 2 serial interfaces (RS232/RS485).
- Long Description: TB511-ETH: AC500 Terminal base, designed for AC500 V2, includes 1 slot for communication module, Ethernet interface, and 2 serial interfaces (RS232/RS485).
- Ordering CN8: 85389091
- Invoice Description: Terminal base, for AC500 V2, 1 slot for communication module, Ethernet interface, 2 serial interfaces (RS232/RS485).
- Made to Order: No
- Minimum Order Quantity: 1 piece
- Order Multiple: 1 piece
- Selling Unit of Measure: piece
Dimensions
- Product Net Weight: 0.159 kg
- Product Net Depth / Length: 28 mm
- Product Net Height: 135 mm
- Product Net Width: 95.5 mm
- Gross Weight: 0.215 kg
- Package Level 1 Depth / Length: 147 mm
- Package Level 1 Height: 40 mm
- Package Level 1 Width: 131 mm
- Package Level 1 Units: 1 carton
Technical Specifications
- Function: Terminal base for AC500 V2, 1 slot for communication module, Ethernet interface, 2 serial interfaces (RS232/RS485).
- Communication Interface: D-SUB, RJ45, Terminals
- Input Voltage Type: DC
- Degree of Protection: IP20
- Supply Voltage: 24 V DC
-
Ambient Air Temperature:
- Operation: 0 … +60 °C
- Storage: -40 … +70 °C
Additional Information
- Product Main Type: TB511
- Product Name: Distributed Automation PLCs
Classifications
- eClass: 27-24-22-92
- ETIM 8: EC000810 - PLC mounting rack
- UNSPSC: 32151703
Environmental Information
- SCIP: a6c04b4a-b9a6-4a06-910c-402defa687f6 (Germany)
- WEEE B2C / B2B: Business to Business
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
