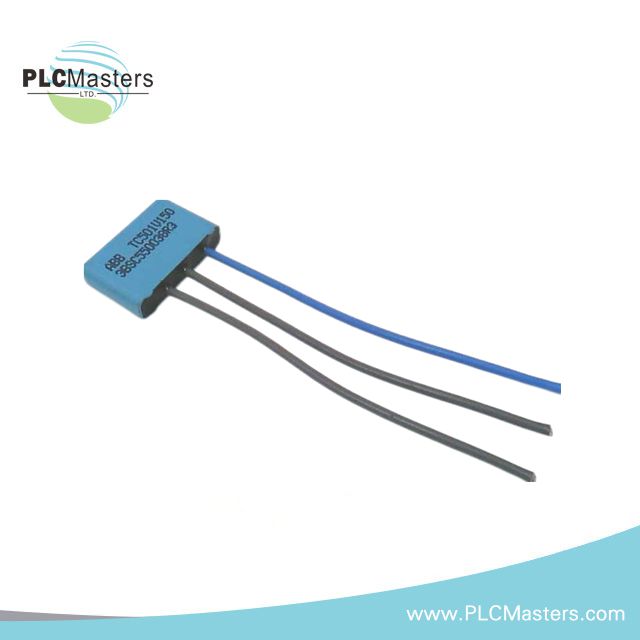

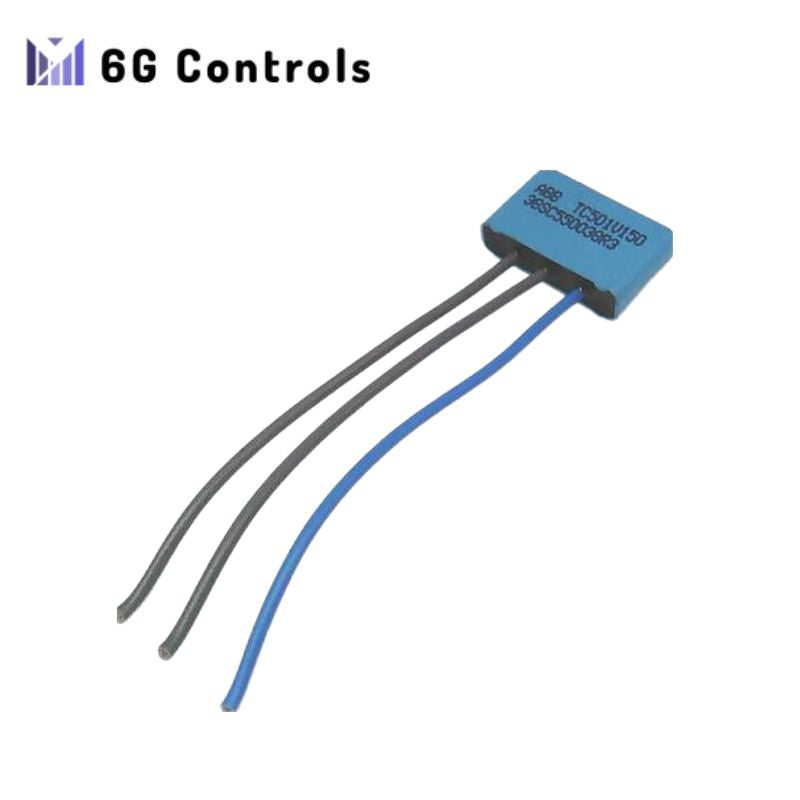

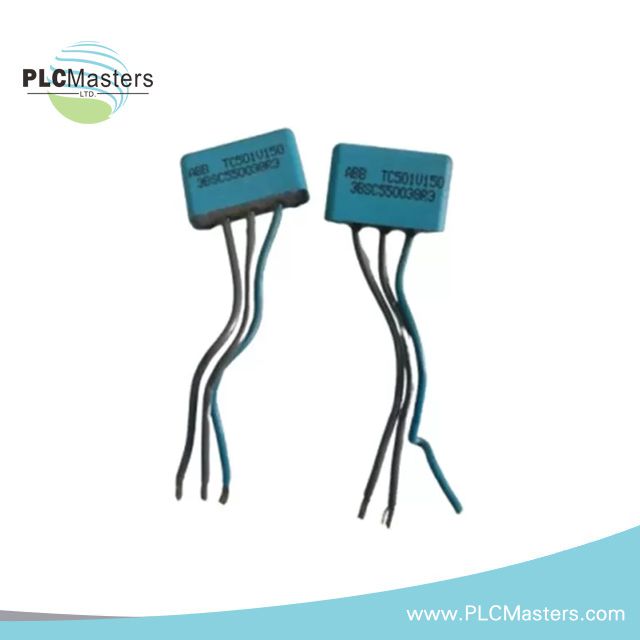

ABB TC501V150 3BSC550038R3 Termination unit

ABB TC501V150 3BSC550038R3 Termination unit

  • 1000 In stock
  • Manufacturer: ABB

  • Product No.: TC501V150 3BSC550038R3

  • Condition: In stock

  • Product Type: Termination unit

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 5g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41503279939674,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"TC501V150 3BSC550038R3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ABB TC501V150 3BSC550038R3 Termination unit","public_title":null,"options":["Default Title"],"price":21000,"weight":5,"compare_at_price":51000,"inventory_management":"shopify","barcode":"Sweden","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

General Information

Product ID:
3BSC550038R3

ABB Type Designation:
TC501V150

Catalog Description:
TC501V150 Termination unit, 150 Ohm

Long Description:

  • S600 I/O speed meter input, max 50 kHz, ±13 mA
  • Supports 24 V d.c. or 5 V d.c.
  • Direction detection via a second speed meter input
  • Includes overspeed trip logic with trip signal output
  • Outputs via solid state (24 V d.c.) and dry contact (60 V d.c.)
  • Speed meter inputs and solid state output are individually opto-isolated

Note: This part is exempt from the scope of 2011/65/EU (RoHS) as per Article 2(4)(c), (e), (f), and (j).
(Ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY - ABB Advant Master Process Control System)

Additional Information

Medium Description:
TC501V150 Termination unit, 150 Ohm

Product Type:
Prefabricated_Cable

Technical Information

  • S600 I/O speed meter input, max 50 kHz, ±13 mA
  • Voltage: 24 V d.c. or 5 V d.c.
  • Direction detection through a second speed meter input
  • Overspeed trip logic with output via solid state (24 V d.c.) and dry contact (60 V d.c.)
  • Speed meter inputs and solid state output are individually opto-isolated

Note: This part is exempt from the scope of 2011/65/EU (RoHS) as per Article 2(4)(c), (e), (f), and (j).
(Ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY - ABB Advant Master Process Control System)

Ordering Information

HS Code:
853890 - Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36, or 85.37 - Other

Customs Tariff Number:
85389091

Dimensions

  • Product Net Depth / Length: 100 mm
  • Product Net Height: 30 mm
  • Product Net Width: 200 mm
  • Product Net Weight: 0.005 kg
  • Cable Length: 0 m

Environmental Information

  • RoHS Status: Following EU Directive 2011/65/EU
  • WEEE Category: Product Not in WEEE Scope
