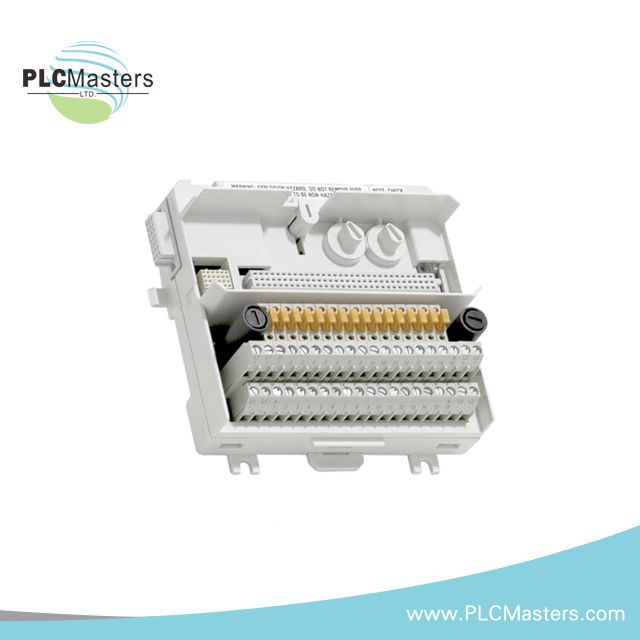

ABB TU850 3BSE050930R1 Extended I/O Module
$186.00
$542.00
What our customer's think
Reviews
Description
General Information
- Article Number: 3BSE050930R1
- Type: Extended
- Connection: Terminal block
- Channels: 16
- Voltage: 50 V
- Mounting: Both directions
- Mounting Detail: 55º (131 °F)
- Use with I/O: AI810, DI810, DI811, DI830, DI831
- Process Connections: 40 up to 16 I/O channels
- Sensor/Transmitter Power Outlets: 16 current-limited outlets
- Connectors: D-sub 25-pin (male)
- Single/Redundant I/O: Single
Detailed Data
- Maximum Current per I/O Channel: 2A
-
Acceptable Wire Sizes:
- Solid: 0.2 - 4 mm²
- Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
- Recommended Torque: 0.5 - 0.6 Nm
- Stripping Length: 7 mm
- Dielectric Test Voltage: 500 V a.c.
Environment and Certification
- CE Mark: Yes
-
Electrical Safety:
- EN 61010-1
- UL 61010-1
- EN 61010-2-201
- UL 61010-2-201
-
Hazardous Location Certifications:
- C1 Div 2 cULus
- C1 Zone 2 cULus
- ATEX Zone 2
- Temperature (Operating): 0 to +55 °C (+32 to +131 °F)
- Temperature (Storage): -40 to +70 °C (-40 to +158 °F)
- Pollution Degree: Degree 2 (IEC 60664-1)
- Corrosion Protection: ISA-S71.04: G3
- Relative Humidity: 5 to 95 %, non-condensing
- Max Ambient Temperature: 55 °C (131 °F)
- Protection Class: IP20 (IEC 60529)
- Mechanical Operating Conditions: IEC/EN 61131-2
-
EMC:
- EN 61000-6-4
- EN 61000-6-2
- Overvoltage Categories: IEC/EN 60664-1, EN 50178
- Equipment Class: Class I (IEC 61140, earth protected)
- RoHS Compliance: EN 50581:2012
- WEEE Compliance: DIRECTIVE/2012/19/EU
Dimensions
- Width: 126 mm (5 in.) including connector, 120.5 mm (4.74 in.) edge to edge installed
- Depth: 64 mm (2.52 in.) including terminals
- Height: 110 mm (4.3 in.)
- Weight: 0.26 kg (0.57 lbs)
