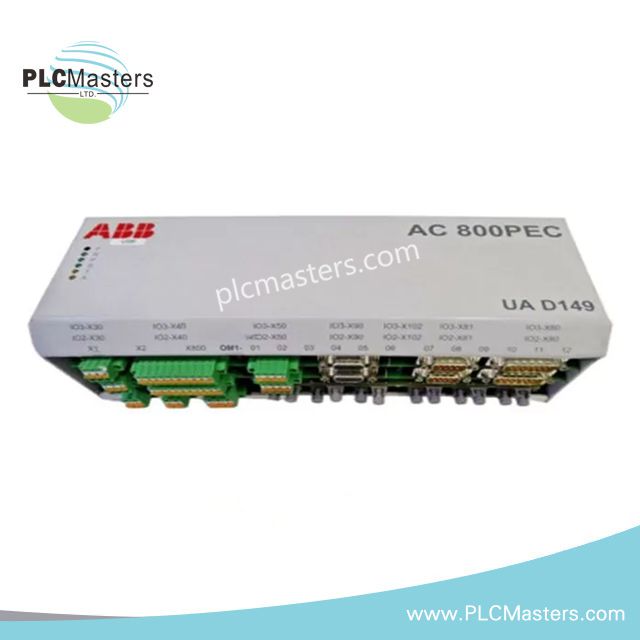

ABB UAD149 3BHE014135R0011 Combi I/O Module

Overview

The ABB UAD149 3BHE014135R0011 is a versatile Combi I/O module designed for integration with ABB's AC 800PEC control system. This module handles both analog and digital signals, offering a flexible solution for various industrial automation applications. It supports load cell signals, control signals, and external unit connections, making it suitable for complex systems that require high performance.

Technical Specifications

• Model Number: UAD149 3BHE014135R0011

• Type: Combi I/O Module

• Manufacturer: ABB

• Application: AC 800PEC control system

Interfaces

• 2 or 4 analog inputs for load cell signals

• 4 analog outputs (voltage or current)

• 8 digital inputs for control signals

• 8 digital outputs

• +24 V supply for external units (max 0.5 A)

• Ethernet connection

• 2 serial interfaces (RS-232) for external displays and control

Environmental Conditions

• Operating Temperature: -25°C to +60°C

• Storage Temperature: -40°C to +70°C

• Humidity: 5% to 95% (non-condensing)

Compliance and Dimensions

• Meets industry standards

• Dimensions: 29 cm x 32.3 cm x 3.5 cm

• Weight: 0.85 kg
