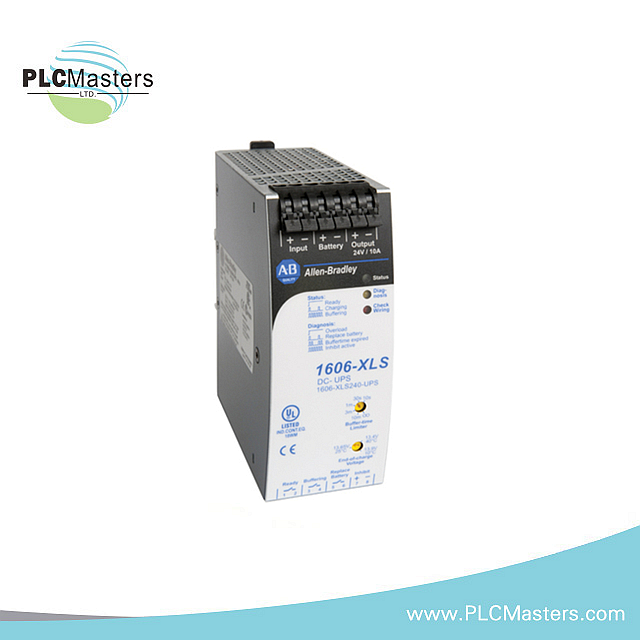

Allen-Bradley 1606-XLS240-UPS Switched Mode Power Supply

Allen-Bradley 1606-XLS240-UPS Switched Mode Power Supply

  • 1000 In stock
  • Manufacturer: Allen-Bradley

  • Product No.: 1606-XLS240-UPS

  • Condition: In stock

  • Product Type: Switched Mode Power Supply

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 530g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41477137334362,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"1606-XLS240-UPS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Allen-Bradley 1606-XLS240-UPS Switched Mode Power Supply","public_title":null,"options":["Default Title"],"price":18300,"weight":530,"compare_at_price":49000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The Allen-Bradley 1606-XLS240-UPS is a bulletin 1606 switched mode power supply that provides reliable power solutions for various applications. It features a nominal input voltage of 24V DC with a range of 22.5-30V DC. The device offers two output current modes: a minimum of 15A in normal mode and 10A in buffer mode.

Technical Specifications

  • Input Voltage: Nominal 24V DC
  • Input Voltage Range: 22.5-30V DC
  • Output Current:
    • Normal mode: Minimum 15A
    • Buffer mode: Minimum 10A
  • Output Voltage:
    • Normal mode: 0.23V lower than input voltage
    • Buffer mode: 22.25V at 10A
  • Allowed Batteries: 3.9Ah to 40Ah VRLA lead acid
  • Temperature Range: -25 to +70°C operational
  • Derating: 0.43A/°C from +60°C to +70°C in normal mode
  • Dimensions:
    • Width: 49 mm
    • Height: 124 mm
    • Depth: 117 mm
  • Weight: 0.53 kg

Input Specifications

  • Input Voltage Nominal: DC 24V
  • Input Voltage Ranges:
    • 22.5 to 30V DC (Continuous operation)
    • 30 to 35V DC (Temporarily allowed, no damage)
    • 35V DC (Absolute maximum input voltage)
    • 0 to 22.5V DC (Switches to buffer mode)
  • Allowed Input Voltage Ripple:
    • Max. 1.5Vpp (Bandwidth <400Hz)
    • 1Vpp (Bandwidth 400Hz to 1kHz)
  • Turn-On Voltage: Typ. 22.8V DC (Does not switch on below this)
  • Input Current:
    • Typ. 120mA (Internal current consumption)
    • Typ. 1.1A (Battery charging at 24V input)
  • External Capacitors on Input: No limitation

Output in Normal Mode

  • Nominal Output Voltage: DC 24V
  • Voltage Drop Between Input and Output:
    • Max. 0.3V (At 10A output current)
    • Max. 0.45V (At 15A output current)
  • Ripple and Noise Voltage: Max. 20mVpp (20Hz to 20MHz)
  • Output Current: Nominal 15A (Continuously allowed)
  • Output Power: Nominal 360W (Continuously allowed)
  • Short-Circuit Current:
    • Min. 17.9A (Load impedance 100mOhm)
    • Max. 21A (Load impedance 100mOhm)

Output in Buffer Mode

  • Nominal Output Voltage: DC 24V
  • Output Voltage in Buffer Mode:
    • 22.45V ±1% (At no load)
    • 22.25V ±1% (At 10A output current)
  • Transfer Threshold for Buffering: Typ. 80mV higher than output voltage
  • Output Current: Nominal 10A (Continuously allowed)
  • Short-Circuit Current:
    • Min. 17.9A (Load impedance 100mOhm)
    • Max. 21A (Load impedance 100mOhm)

Battery Input

  • Nominal Battery Voltage: DC 12V
  • Battery Voltage Range: 9.0 – 15.0V (Continuously allowed)
  • Allowed Battery Sizes: 3.9Ah to 40Ah
  • Battery Charging Method: CC-CV (Constant current, constant voltage)
  • Battery Charging Current (CC-mode): Nom. 1.5A
  • End-of-Charge Voltage (CV-mode): 13.4-13.9V (Adjustable)
  • Battery Discharging Current:
    • Typ. 21A (At 10A output current)
    • Typ. 0.3A (At 0A output current)

Buffer Time

  • Buffer Time with Battery Module 1606-XLSBATASSY1:
    • Min. 19’12” (At 5A output current)
    • Min. 5’42” (At 10A output current)
  • Buffer Time with Battery Module 1606-XLSBATASSY2:
    • Min. 99’30” (At 5A output current)
    • Min. 39’ (At 10A output current)

Environment

  • Operational Temperature: -25°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5 to 95% r.H.
  • Vibration:
    • Sinusoidal 2-17.8Hz: ±1.6mm
    • 17.8-500Hz: 2g
  • Shock: 30g 6ms, 20g 11ms
  • Altitude: 0 to 6000m

Physical Dimensions and Weight

  • Width: 49mm / 1.93’’
  • Height: 124mm / 4.88’’
  • Depth: 117mm / 4.61’’
  • Weight: 530g / 1.17lb
  • DIN Rail Use: 35mm DIN rails according to EN 60715 or EN 50022

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
