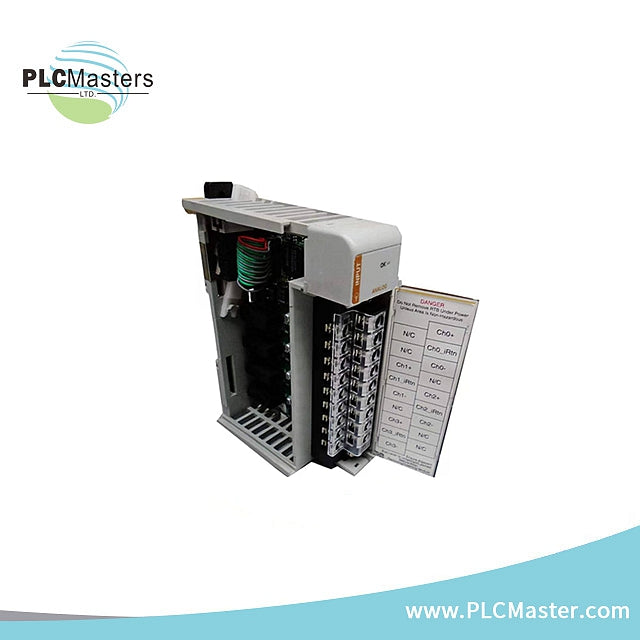

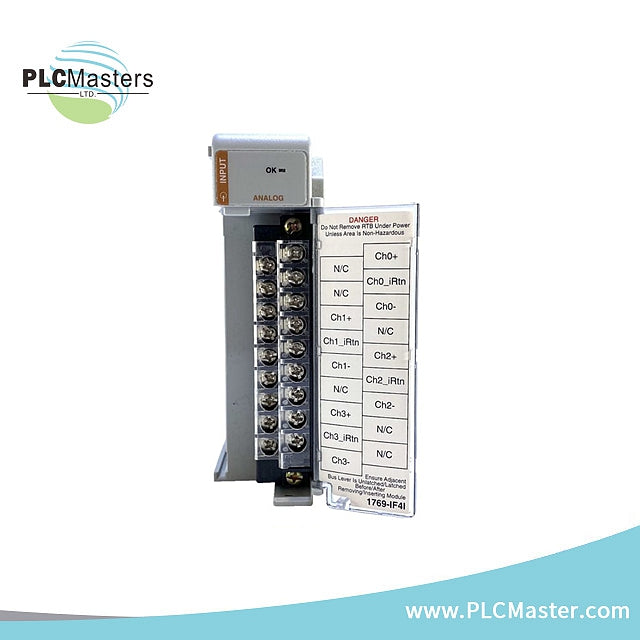

Allen-Bradley 1769-IF4I Analog Input
$260.00
$540.00
What our customer's think
Reviews
Description
Overview
- 4-channel isolated analog input module
- Designed for CompactLogix automation systems
- Measures process variables with high resolution
Technical Specifications
General
- Manufacturer: Allen-Bradley
- Product Type: Analog Input
- Input: 4 isolated differential
- Bus Current Draw: 5V DC, 140 mA; 24V DC, 110 mA
- Heat Dissipation, Max: 3.0 W
- Converter Type: Delta Sigma
- Resolution: 16 bits (unipolar), 15 bits plus sign (bipolar)
- Rated Working Voltage: 30V AC/30V DC
- Common Mode Voltage Range: ±10V DC max per channel
- Accuracy: Voltage: ±0.2% full scale @ 25 °C (77 °F); Current: ±0.35% full scale @ 25 °C (77 °F)
- Nonlinearity: ±0.03%
- Repeatability: ±0.03%
- Isolation Voltage: 500V AC or 710V DC for 1 minute (qualification test); group to bus 30V AC/30V DC working voltage (IEC Class 2 reinforced insulation); 500V AC or 710V DC for 1 minute or 250V continuous (optical and magnetic), channel to rack and channel to channel.
- Module Location: DIN rail or panel mount
- Power Supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- Power Supply Distance Rating: 8 modules
- Replacement Terminal Block: 1769-RTBN18 (1 per kit)
- Dimensions (L x W x H): 11.8 x 3.5 x 8.7 cm
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
