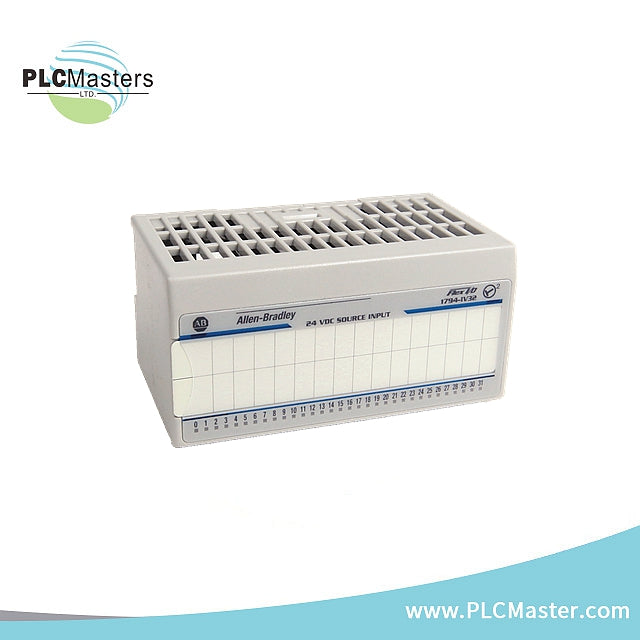

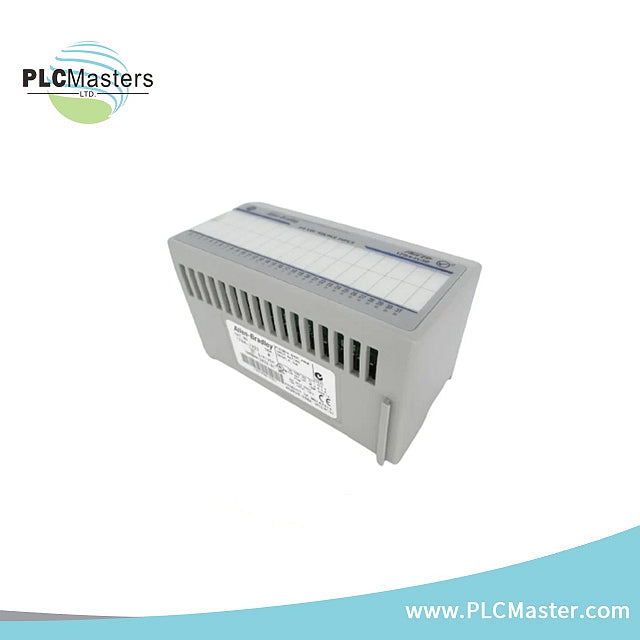

Allen-Bradley 1794-IV32 FLEX I/O Digital Sourcing Input and Sinking Output Module
$200.00
$510.00
What our customer's think
Reviews
Description
General Specifications
- Dimensions: 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in.)
- Indicators: 32 yellow status indicators
- External DC Power Supply Voltage (Nominal): 24V DC
- External DC Power Voltage Range: 19.2…31.2V DC (includes 5% AC ripple)
- North American Temperature Code: T4
- Keyswitch Position: 2
- Enclosure Type Rating: None (open-style)
- Weight: 77 g (2.72 oz)
- Wire Size: Determined by the installed terminal base
- Wiring Category: 2 – on signal ports
Specifications
- Number of Inputs: 32, current, sourcing
- Recommended Terminal Base Units: 1794-TB32, 1794-TB32S, 1794-TB62DS, 1794-TB62EXD4X15
- On-state Voltage: 19.2V DC minimum, 24V DC nominal, 31.2V DC maximum
- On-state Current: 2.0 mA minimum, 4.1 mA nominal @ 24V DC, 6.0 mA maximum
- Off-state Voltage: 5V DC maximum
- Off-state Current: 1.5 mA maximum
- Input Impedance: 6 kΩ
- Isolation Voltage: 50V continuous, type tested @ 850V DC for 60 s
- Flexbus Current: 40 mA @ 5V DC
- Power Dissipation: 6 W maximum @ 31.2V DC
- Thermal Dissipation: 20.5 BTU/hr maximum @ 31.2V DC
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
