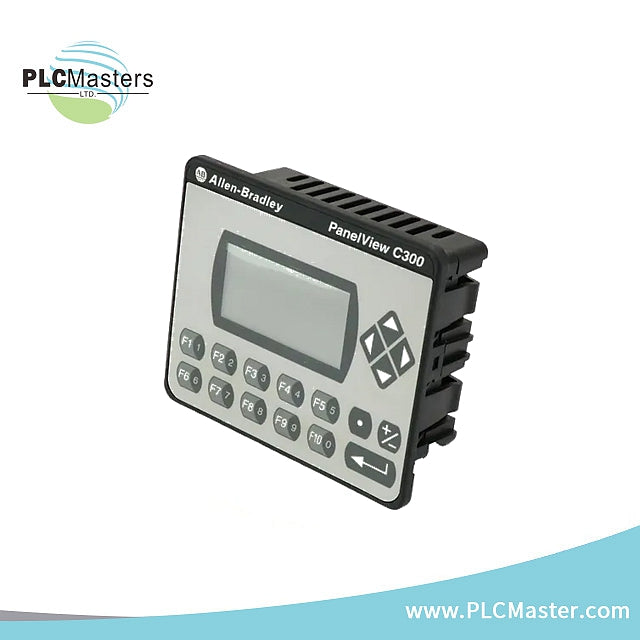

Allen-Bradley 2711C-K3M PanelView
$222.00
$455.00
What our customer's think
Reviews
Description
Overview
- Monochrome transflective FSTN display, 3 inches, 128 x 64 resolution
- Ten function keys, numeric keypad, and analog touch input
- Communication ports: RS-232, RS-485, multi-vendor support
Display Specifications
- Type: Monochrome transflective FSTN passive matrix
- Size: 3 inches
- Area: 67 x 33 mm (2.64 x 1.30 in.)
- Resolution: 128 x 64
- Backlight: 50,000 hours life, not replaceable
- Status Indicator: White
Operator Input
- Keys: Ten function keys (F1…F10), numeric keypad (0…9), directional arrows, decimal, +/-, Enter
- Touch: Analog Touch available
System Specifications
- Real-Time Clock: No battery backup
- Battery: 5-year minimum at 25 °C (77 °F)
- Programming Port: USB device port
- Communication Ports: RS-232 (DH-485), RS-232 (DF1), RS-485, Modbus, Siemens MPI
- Memory Card: USB flash drive
- Software: DesignStation 2.0+, Web-enabled software, browser support: Firefox 3.0, IE 7 or 8
- Preferred Controller: MicroLogix, SLC™, Micro800
Power Specifications
- Input Voltage, DC: 18…30V DC (24V DC nominal)
- Power Consumption, DC: 5 W maximum (0.21 A at 24V DC)
Physical Specifications
- Weight: Approximately 0.30 kg (0.65 lb)
- Dimensions: 119 x 139 x 55 mm (4.69 x 5.47 x 2.15 in.)
- Cutout Dimensions: 100 x 120 mm (3.94 x 4.72 in.)
Features
