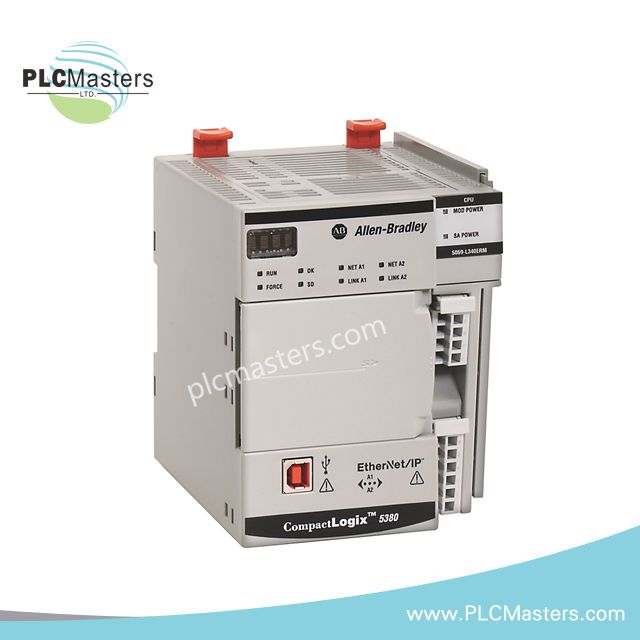

Allen Bradley 5069-L310ER CompactLogix 5380 Controller
$184.00
$340.00
What our customer's think
Reviews
Description
Overview
The Allen-Bradley 5069-L310ER is a high-performance CompactLogix 5380 controller designed for industrial automation systems. It features an embedded user memory of 1 MB, external power supply support of 18–32 VDC, and modular scalability for up to eight 5069 Compact I/O modules. With dual Ethernet/IP ports and one USB port, it offers advanced connectivity options and supports multiple network topologies, including Star, Linear, and Device Level Ring. This controller excels in applications requiring reliable communication, precise task execution, and robust environmental performance.
Technical Specifications
Memory and Storage
- User Memory: 1 MB (embedded).
-
Non-Volatile Memory:
- Shipped with 1784-SD2 (2 GB).
- Expandable: 1784-SDHC8 (8 GB), 1784-SDHC32 (32 GB), and 9509-CMSDCD4 (4 GB CodeMeter CmCard).
Communication
-
Ports:
- Two Ethernet/IP ports.
- One USB port.
-
Ethernet Performance:
- Speeds: 10 Mbps, 100 Mbps, and 1 Gbps (full-duplex only).
- Supports up to 24 Ethernet/IP nodes.
- Supported Topologies: Linear, Star, and Device Level Ring.
Task and Program Management
- Tasks: Supports 32 tasks.
- Programs: Up to 1000 programs per task.
Environmental Specifications
- Operating Temperature: 32°F to 140°F (0°C to 60°C).
- Storage Temperature: -40°F to 185°F (-40°C to 85°C).
- Humidity: 5% to 95% non-condensing.
-
Shock Resistance:
- Operating: 30 g (3 pulses, 11 ms).
- Non-Operating: 50 g (3 pulses, 11 ms).
Physical Specifications
- Dimensions: 5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm).
- Weight: 2.1 lbs.
Programming Capabilities
- Languages Supported: Ladder Diagram, Structured Text, Sequential Function Chart, and Function Block Diagram.
- Compliance: IEC 61131-3 standards.
I/O and Expansion
- I/O Modules: Supports up to eight 5069 Compact I/O modules.
- Motion Axes: 0 motion axes.
Certifications and Standards
- EMC Standards: EN 50081-2 and EN 50082-2.
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
