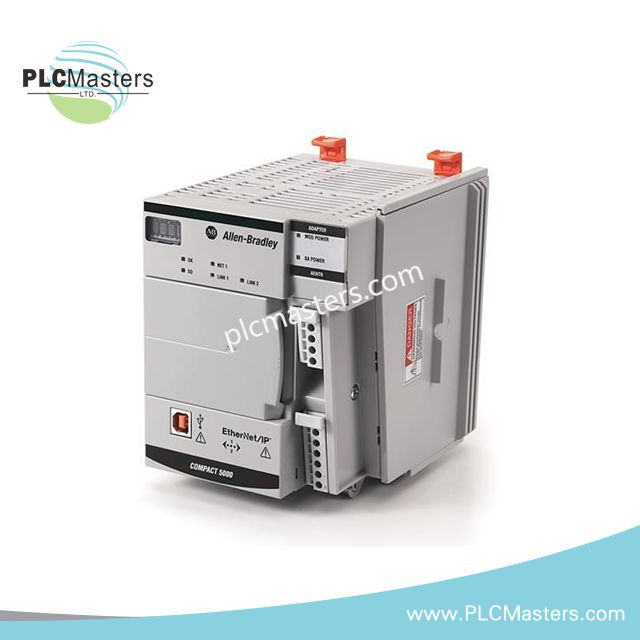

Allen Bradley 5069-L310ERM CompactLogix 5380 Controller
$195.00
$340.00
What our customer's think
Reviews
Description
Overview
The Allen-Bradley 5069-L310ERM is a high-performance controller from the CompactLogix 5069 and CompactLogix 5380 series, designed for applications that require efficient control, motion, and scalable connectivity. It supports up to 24 Ethernet/IP nodes, 4 integrated motion axes, and up to 8 local I/O modules. This controller is ideal for motion control and industrial automation applications, offering advanced features like dual Ethernet ports, USB connectivity, and integrated motion over Ethernet/IP.
Technical Specifications
- Dimensions: 143.97 x 98.10 x 136.81 mm (5.67 x 3.86 x 5.39 in)
- Weight: 0.768 kg (1.693 lb)
- Ethernet/IP Nodes Supported: 24
-
Communication Ports:
- 1 USB 2.0 Type B port
- 2 Ethernet/IP ports
-
Ethernet Communication Rates:
- 10 Mbps
- 100 Mbps
- 1 Gbps (full-duplex)
- Ethernet/IP Network Topologies Supported: Device Level Ring (DLR), Star, Linear
- Application Memory: 1 MB user memory
- Local I/O Modules Supported: Up to 8 I/O modules
-
Motion Axes:
- 4 integrated CIP drive axes
- Up to 256 motion axes supported
- Non-volatile Memory: 2GB via 1784-SD2 SD card
-
Power Requirements:
- Input voltage: 18 to 32 VDC
- Maximum current: 450 mA
-
Power and Thermal Dissipation:
- Maximum power: 8.5 Watts
- Thermal dissipation: 29 BTU/hour
- Installation: Must be mounted inside an enclosure with a flame spread rating of 5 VA
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
