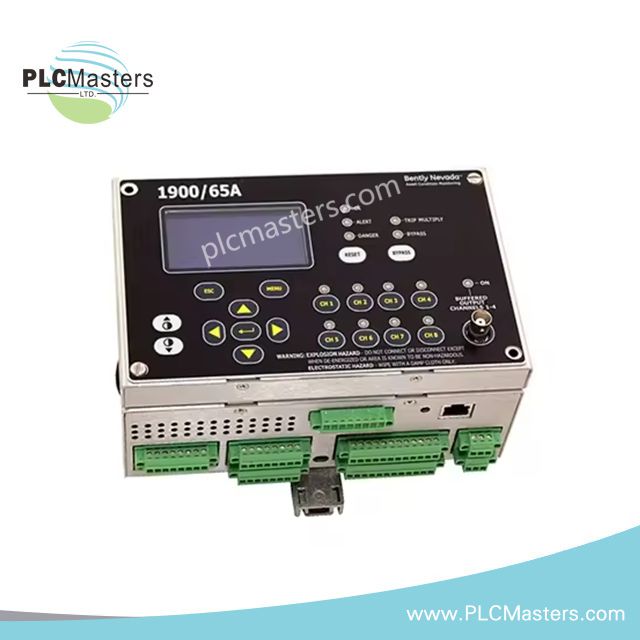

Bently Nevada 1900/65A-00-00-01-00-00 General Purpose Equipment Monitor

Overview

The Bently Nevada 1900/65A-00-00-01-00-00 is a cost-effective solution for continuous monitoring and protection of non-critical industrial machinery.

Key Technical Specifications

• Model Number: 1900/65A-00-00-01-00-00

• Type: General Purpose Equipment Monitor

• Power Supply: 18 to 36 VDC

Display and Mounting

• Display Option: Attached display (no cable required)

• Mounting Option: DIN rail mount

Inputs and Outputs

• Inputs:

• 4 transducer inputs (supports 2- and 3-wire accelerometers, velocity sensors, and proximity sensors)

• 4 temperature inputs (supports Type E, J, K, and T thermocouples, and 2- or 3-wire RTDs)

• Outputs:

• 6 relay outputs

• 4 configurable 4-20 mA recorder outputs

• Buffered output for transducer signals

Communication and Operating Conditions

• Communication: Modbus via Ethernet and RS232/485 serial port

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

Physical Characteristics

• Dimensions: 19.69 cm x 14.94 cm x 7.44 cm

• Weight: 0.8 kg

• Operating Temperature: Ranges from -30°C to +65°C (-22°F to +149°F) for diverse environments.
