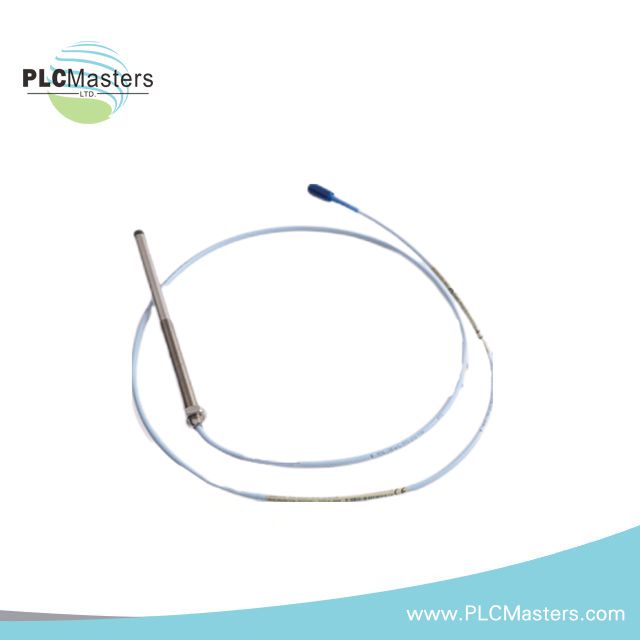

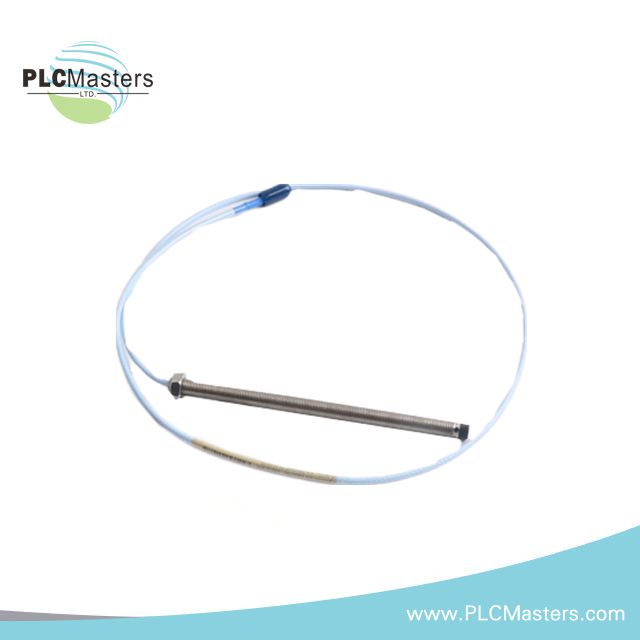

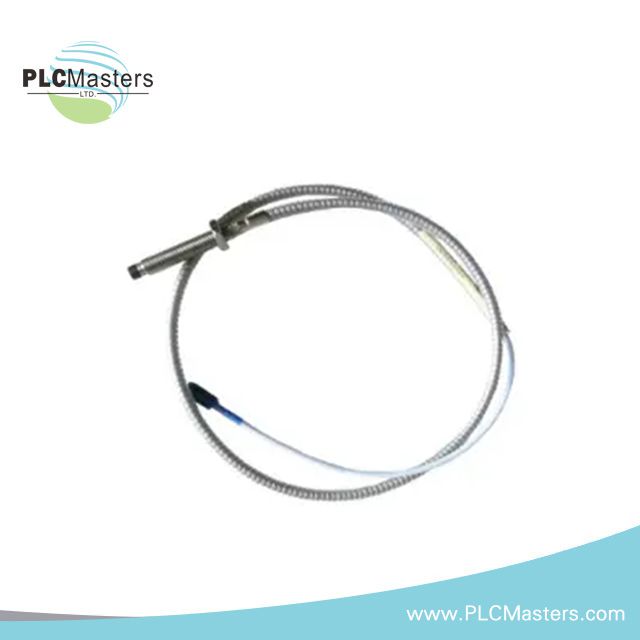

Bently Nevada 330103-00-05-10-02-05 3300 XL 8 mm Proximity Probes
$118.00
$228.00
What our customer's think
Reviews
Description
Overview
The Bently Nevada 330103-00-05-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer system designed for measuring vibration and position in rotating machinery. It is part of the 3300 XL series, offering superior sensitivity, accuracy, and ruggedness compared to previous models. This proximity probe is ideal for vibration monitoring, position measurement, and other critical applications in industries such as oil and gas, power generation, and manufacturing.
Technical Specifications
General Specifications
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 303 or 304 stainless steel (SST)
- Weight: 0.323 kg
- Operating Temperature: Typically between +18°C and +27°C (+64°F to +80°F)
- Pressure Rating: Designed to seal differential pressure between the probe tip and case
- Target Material: AISI 4140 steel (for calibration)
- Altitude: Maximum 2000 meters (6562 feet)
Measurement Range
- Static Displacement: ±2.54 mm (100 mils)
- Dynamic Displacement: 0 to 2.54 mm (0 to 100 mils)
Power Requirements
- Operating Voltage: -17.5 Vdc to -26 Vdc (with non-incendive circuit)
- Current Consumption: Maximum 12 mA
- Power Supply Voltage: -23 Vdc to -26 Vdc with barriers (reduced linear range if more positive than -23.5 Vdc)
Performance Characteristics
- Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
- Output Resistance: 50 Ω
- Temperature Stability: Stable over a broad temperature range for precise measurements
- Interchangeability: Fully interchangeable with other 3300 XL components
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
