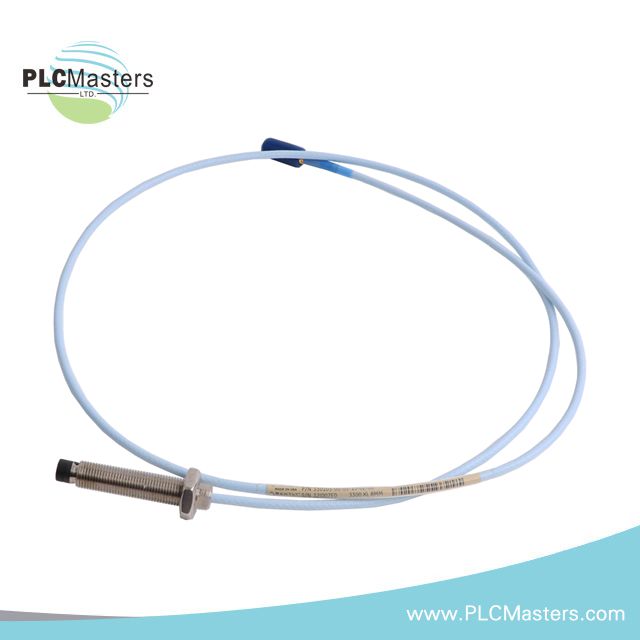

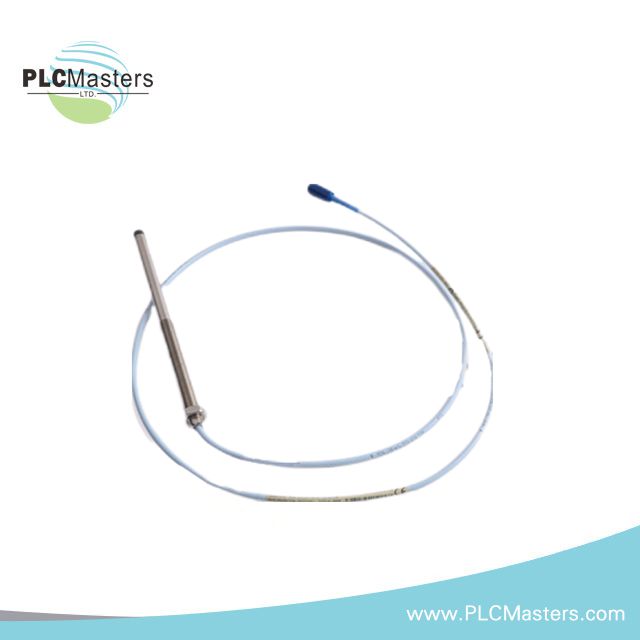

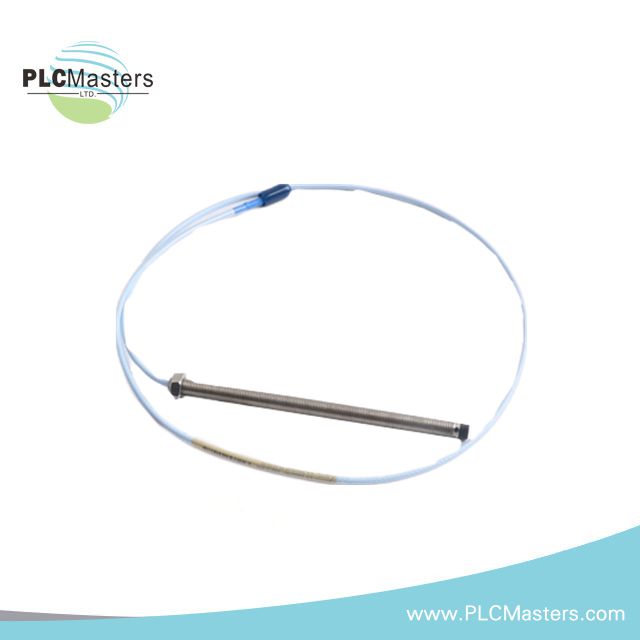

Bently Nevada 330103-00-11-10-02-05 3300 XL 8 mm Proximity Probes
$142.00
$310.00
What our customer's think
Reviews
Description
Overview
The Bently Nevada 330103-00-11-10-02-05 is a highly reliable proximity probe, designed for industrial monitoring applications, particularly in power generation, oil & gas, and manufacturing sectors. It is part of the 3300 XL 8 mm series, recognized for its precision in measuring the distance between the probe and conductive surfaces. The probe is engineered to detect the position of rotating machinery components such as turbines, compressors, pumps, and machine tools.
Technical Specifications
Physical Characteristics
- Model: 330103-00-11-10-02-05
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 303 or 304 stainless steel (SST)
- Weight: 0.323 kg
- Pressure Rating: Designed to seal differential pressure between the probe tip and case with a Viton® O-ring.
- Operating Temperature: Between +18°C and +27°C (+64°F to +80°F)
- Altitude: Maximum 2000 meters (6561 feet) above sea level
- Total Probe Length: 1.0 meter (3.3 feet)
- Overall Case Length: 20 mm
- Target Material: AISI 4140 steel, with a gap set at 1.27 mm (50 mils)
Connector and Cable
- Connector Type: Miniature coaxial ClickLoc with connector protector
- Cable Type: FluidLoc cable
- Connector and Cable Option: 11 - Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
Electrical Specifications
-
Power Supply Requirements:
- -17.5 Vdc to -26 Vdc (maximum 12 mA consumption)
- -23 Vdc to -26 Vdc with barriers
- Operating at voltages higher than -23.5 Vdc reduces the linear range.
-
Proximitor Sensor Input:
- Accepts 3300-series 5 mm and 3300 XL 8 mm proximity probes and extension cables.
-
Output Resistance: 50 Ω
-
Sensitivity: Less than 2 mV change in output voltage per 1V change in input voltage.
Performance Specifications
- Proximity Measurement: Provides precise and reliable measurements of the distance between the probe and a conductive surface, with AISI 4140 steel as the target material.
- Sealing: The probe is not pressure-tested prior to shipment but is designed for sealing differential pressure between the probe tip and case using a Viton® O-ring.
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
