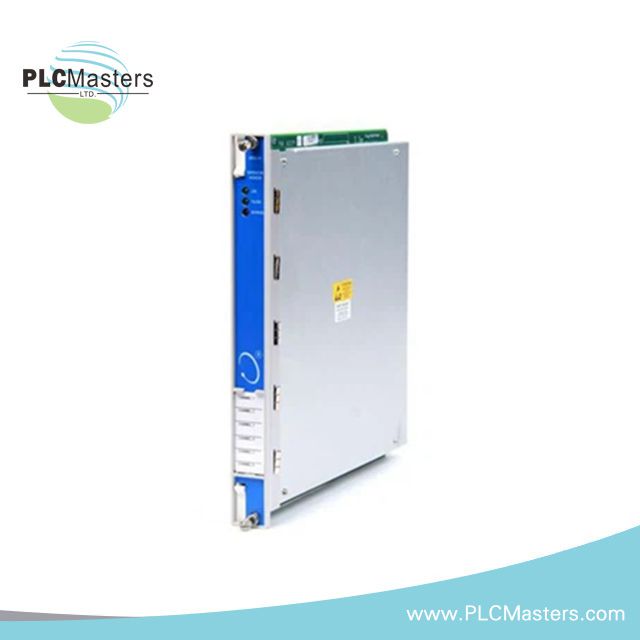

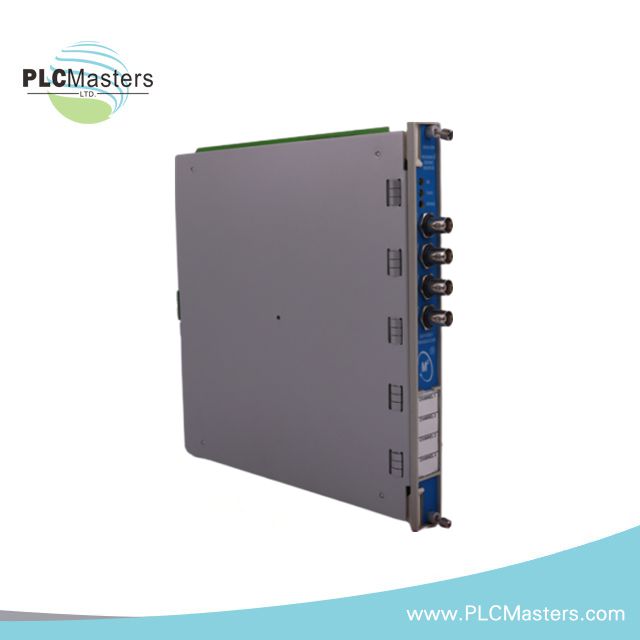

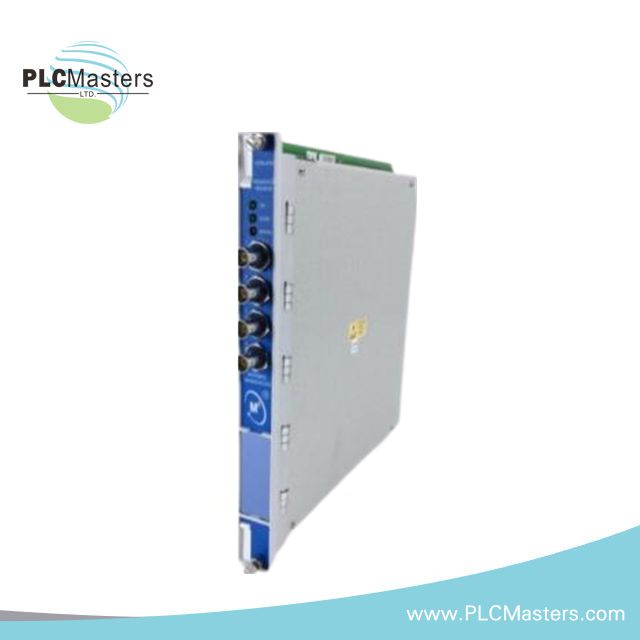

Bently Nevada 3500/42 125672-02 Proximitor Seismic Monitor

Bently Nevada 3500/42 125672-02 Proximitor Seismic Monitor

  • 1000 In stock
  • Manufacturer: Bently Nevada

  • Product No.: 3500/42 125672-02

  • Condition: In stock

  • Product Type: Proximitor Seismic Monitor

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 750g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41490208129114,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"3500\/42 125672-02","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bently Nevada 3500\/42 125672-02 Proximitor Seismic Monitor","public_title":null,"options":["Default Title"],"price":19900,"weight":750,"compare_at_price":50000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The 3500/42 Proximitor®/Seismic Monitor is a versatile four-channel device designed for machinery protection and monitoring. It utilizes inputs from Proximitor and Seismic Transducers to trigger alarms and provide critical vibration data.

Technical Specifications

  • Monitoring Functions:

    • Radial Vibration
    • Thrust Position
    • Eccentricity
    • Differential Expansion
    • Acceleration
    • Velocity
  • Alarm Setpoints:

    • Configured via 3500 Rack Configuration Software
    • Continuous comparison of current machine vibration against setpoints
    • Active proportional values can have configured danger setpoints
  • Configuration:

    • Ships unconfigured, allowing flexibility for various applications
    • Can be integrated into a 3500 rack for monitoring function setup
  • TMR Configuration:

    • Installation: TMR monitors and Proximitor/Seismic TMR I/O Modules must be grouped in threes
    • Voting Mechanisms:
      • TMR Relay Module Voting: 2 out of 3 method where two monitors must agree before an alarm output is activated
      • Comparison Voting: Compares proportional value outputs among monitors; discrepancies beyond a specified limit trigger an entry in the System Event List
  • Input Configuration Types:

    • Bussed Configuration: Uses a single non-redundant transducer's signal for all TMR modules through a Bussed External Termination Block
    • Discrete Configuration: Requires three redundant transducers per measurement location, each connected to separate External Termination Blocks

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
