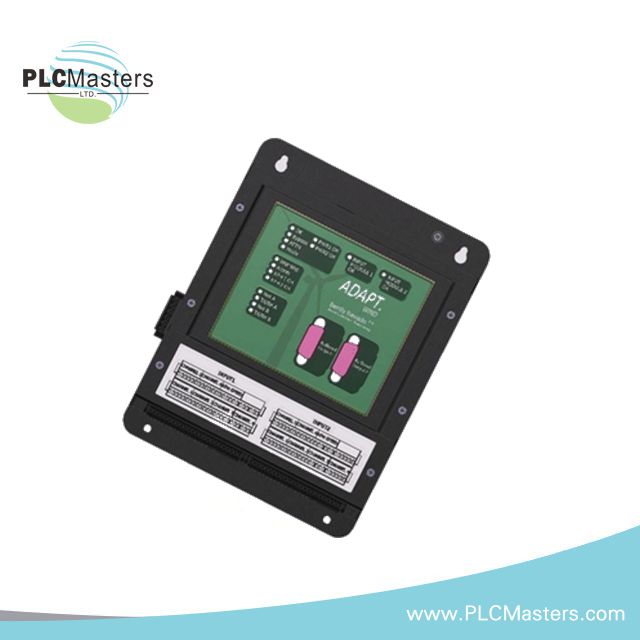

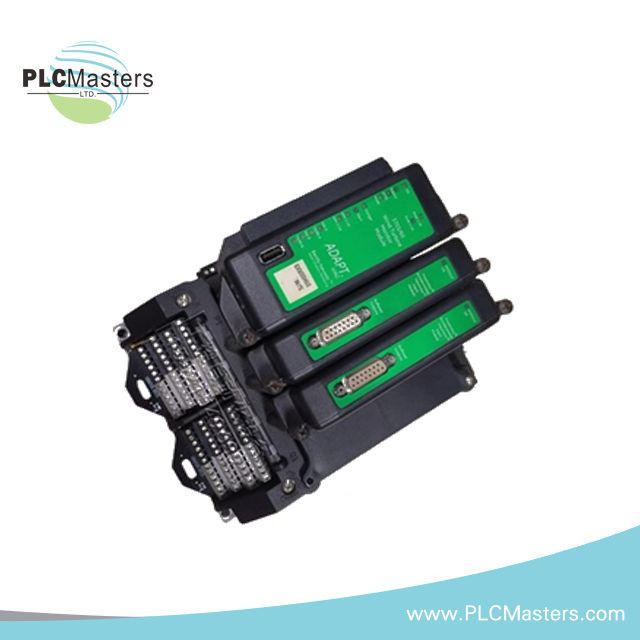

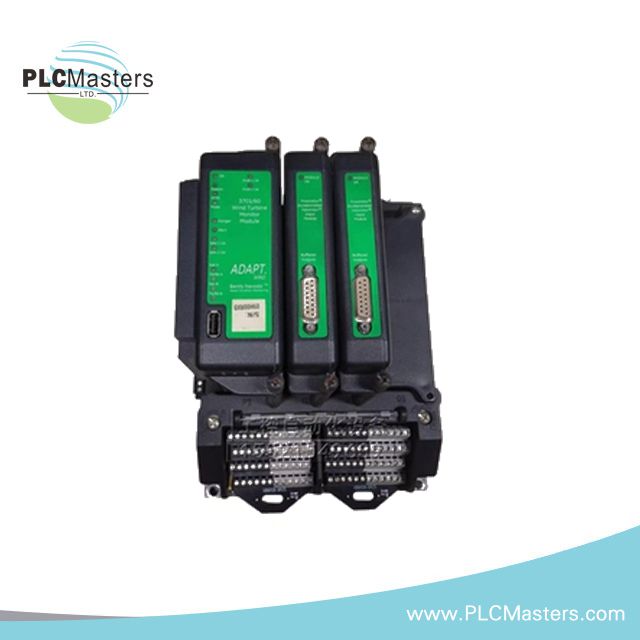

Bently Nevada 3701/60A Wind Turbine Monitor
$157.00
$300.00
What our customer's think
Reviews
Description
Overview
The 3701/60A Wind Turbine Condition Monitoring System provides continuous, real-time monitoring of wind turbine machine trains. Using advanced signal processing algorithms and machine operating states, the system identifies defects before they lead to failures. This allows wind turbine owners to address potential issues months in advance, reducing maintenance costs and preventing unplanned outages.
Technical Specifications
Input Power
- Min: 18 Vdc
- Max: 36 Vdc
Current
- Max: 1.7 A
Inrush Current
- Max: 2.7 A, less than 5 ms
Processor Module
Inputs
- Max: 12 dynamic signals and 2 Keyphasor signals
Dynamic Range
- 110 dB at fs = 102.4 ksps
Signal-to-Noise Ratio
- 110 dB at fs = 102.4 ksps
A/D Conversion
- Sigma-Delta – 24 bits nominal
Bandwidth
- 0 to 40 kHz
Outputs
-
Two Independent Ethernet Ports
- Net A: 10/100 BaseT (Network DHCP Port)
- Net B: 10/100 BaseT (Local Static IP Port)
-
Buffered Signal Outputs
- 15-pin DSUB connector (550-ohm output impedance)
Operating Temperature Range
- -40°C to +70°C (-40°F to 158°F)
Storage Temperature Range
- -45°C to +85°C (-49°F to 185°F)
Relative Humidity
- 0% to 95% non-condensing
Dimensions
- 26.7 x 21.6 x 17.8 cm (10.5 x 8.51 x 7.01 in)
Weight
- 4.3 kg (9.4 lbs)
