Bently Nevada 74712-01-02-02-00 High-temperature Two-wire Transducer

Bently Nevada 74712-01-02-02-00 High-temperature Two-wire Transducer

  • 1000 In stock
  • Manufacturer: Bently Nevada

  • Product No.: 74712-01-02-02-00

  • Condition: In stock

  • Product Type: High-temperature Two-wire Transducer

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 480g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41607883522138,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"74712-01-02-02-00","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bently Nevada 74712-01-02-02-00 High-temperature Two-wire Transducer","public_title":null,"options":["Default Title"],"price":18800,"weight":480,"compare_at_price":30000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

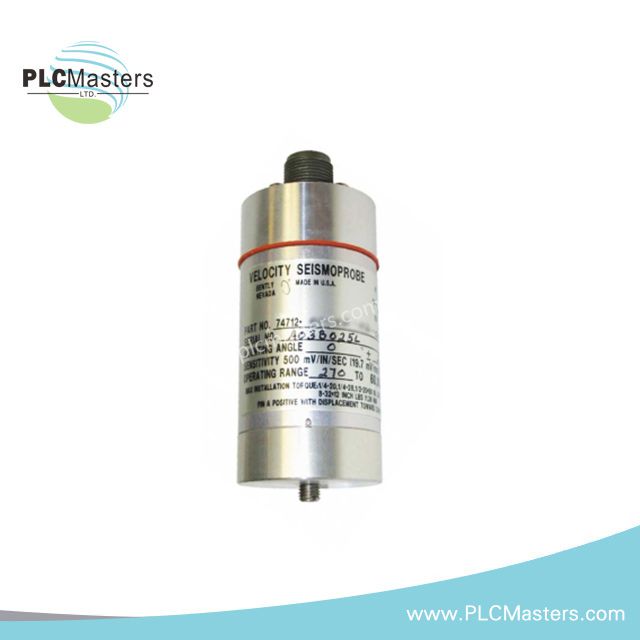

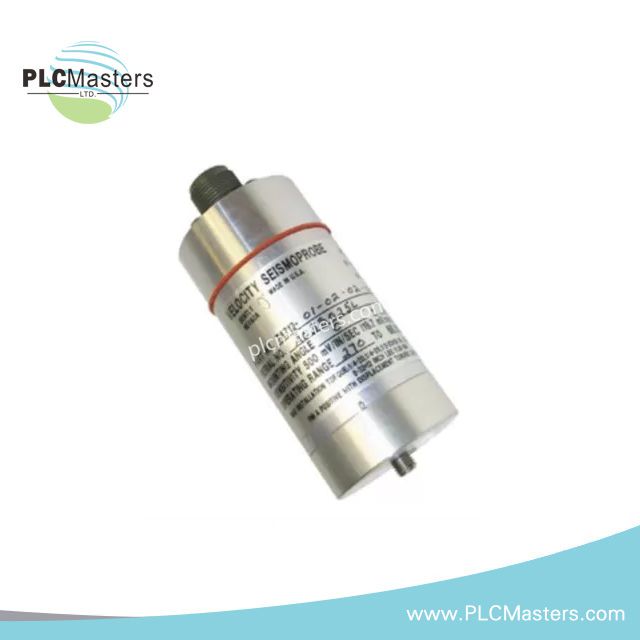

The Bently Nevada 74712-01-02-02-00 is a high-temperature, two-wire velocity transducer designed for machinery vibration monitoring. Utilizing moving-coil technology, it measures vibration velocity and outputs a proportional voltage signal. This transducer is built to perform reliably in harsh industrial environments, such as gas turbines, steam turbines, and internal combustion engines, ensuring effective asset protection and condition monitoring.

Technical Specifications

  • Manufacturer: Bently Nevada
  • Model: 74712-01-02-02-00
  • Type: Velocity Transducer
  • Height: 102 mm (4 in)
  • Diameter: 41 mm (1.6 in)
  • Weight: 0.48 kg
  • Measurement Range: ±100 in/sec (peak)
  • Frequency Response: 10 Hz to 1 kHz
  • Sensitivity: 20 mV/mm/s (500 mV/in/s)
  • Output Signal: ±10 V (voltage output)
  • Operating Temperature: -29°C to +204°C (-20°F to +400°F)
  • Cable Type and Length: Customizable
  • Connector Type: Customizable for specific configurations

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
