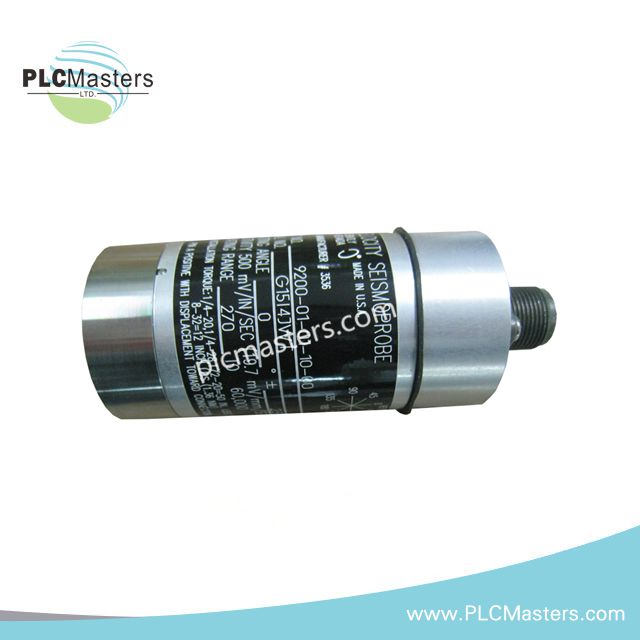

Bently Nevada 9200-01-20-10-00 Two-Wire Velocity Seismoprobe Transducer

Bently Nevada 9200-01-20-10-00 Two-Wire Velocity Seismoprobe Transducer

  • 1000 In stock
  • Manufacturer: Bently Nevada

  • Product No.: 9200-01-20-10-00

  • Condition: In stock

  • Product Type: Two-Wire Velocity Seismoprobe Transducer

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41832220819546,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"9200-01-20-10-00","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bently Nevada 9200-01-20-10-00 Two-Wire Velocity Seismoprobe Transducer","public_title":null,"options":["Default Title"],"price":13900,"weight":300,"compare_at_price":41200,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The Bently Nevada 9200-01-20-10-00 is designed for vibration monitoring of bearing housings, casings, and structures. It uses moving-coil technology, which converts vibration velocity into a voltage output.

Technical Specifications

  • Model Number: 9200-01-20-10-00

  • Type: Two-Wire Velocity Seismoprobe Transducer

  • Manufacturer: Bently Nevada

Measurement and Sensitivity

  • Measurement Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5%

  • Transverse Sensitivity: 10% or less of axial sensitivity

Performance and Durability

  • Shock Resistance: Withstands mechanical shocks up to 50 g peak

  • Frequency Response: 4.5 Hz to 1 kHz (+0, -3dB typical)

Operating Conditions

  • Operating Temperature: -29°C to +121°C (-20°F to +250°F)

Mounting and Connector Options

  • Mounting Base Option: Circular; M10X1 stud

  • Connector Option: Terminal block top mount

Additional Information

  • Weight: 0.3 kg

Features

Minimum Order Quantity (MOQ)

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
