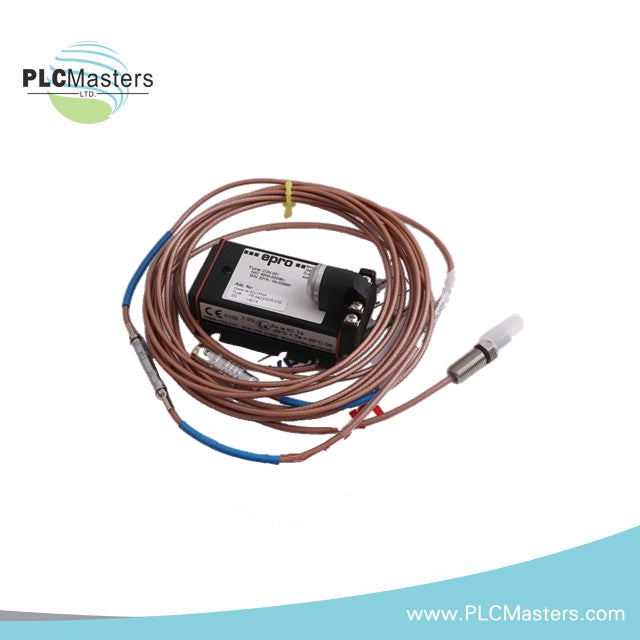

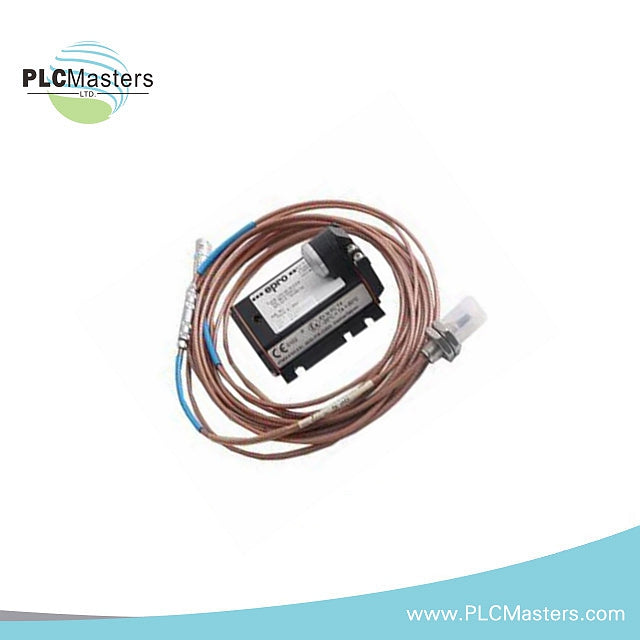

Emerson EPRO PR6423/10R-010-CN Eddy Current Sensor
$240.00
$615.00
What our customer's think
Reviews
Description
Overview
The Emerson EPRO PR6423/10R-010-CN is an 8mm Eddy Current Sensor specifically designed for critical turbomachinery applications, including steam, gas, and hydro turbines, as well as compressors, gearboxes, pumps, and fans. This sensor effectively measures radial and axial shaft dynamic displacement, position, eccentricity, and speed, ensuring precise monitoring of machinery performance.
Technical Specifications
- Manufacturer: Emerson
- Model Number:PR6423/10R-010-CN
- Product Type: Eddy Current Sensor
- Measuring Range: 2 mm (80 mils)
- Initial Air Gap: 0.5 mm (20 mils)
- Incremental Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C
- Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C
- Measuring Target: Minimum Shaft Diameter 25 mm (0.79")
- Target Material: Ferromagnetic Steel 42CrMo4 (AISI/SAE 4140)
Environmental Specifications
- Operating Temperature Range: -35°C to +200°C (-31°F to +392°F)
- Protection Class: IP66, IEC 60529
-
Material:
- Sensor Tip: PEEK Polyether Ether Ketone
- Case: Stainless Steel
- Cable: PTFE Polytetrafluoroethylene
- Connector: Brass, nickel-plated
- Weight: Approx. 100 grams (3.53 oz)
