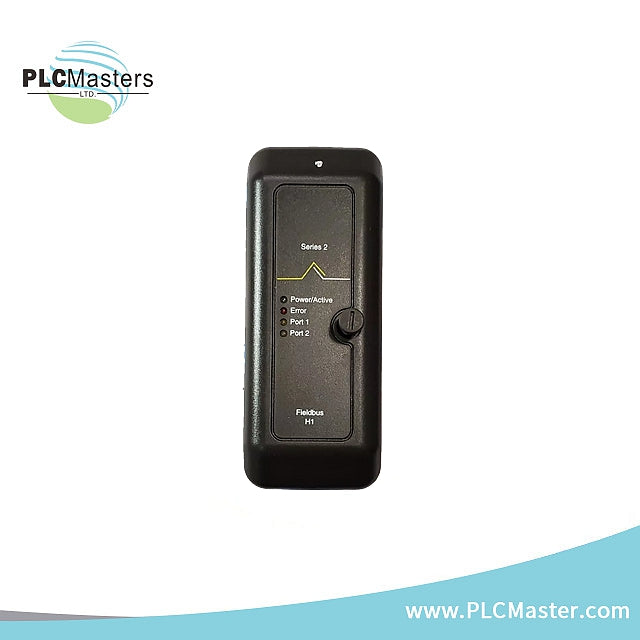

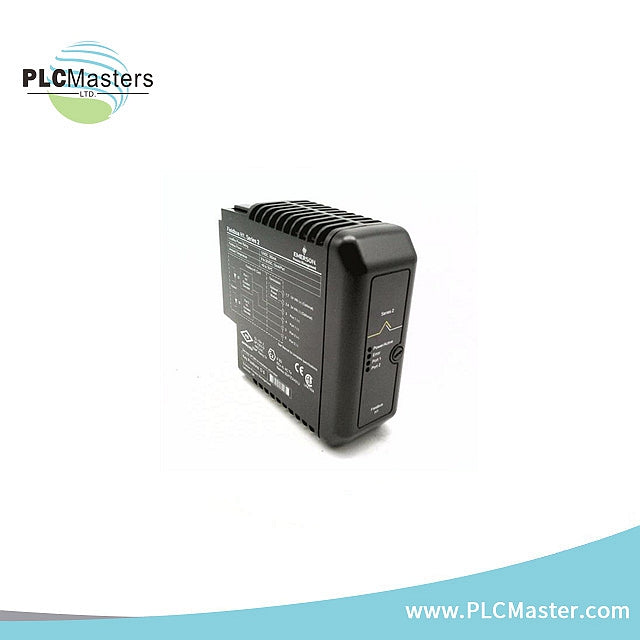

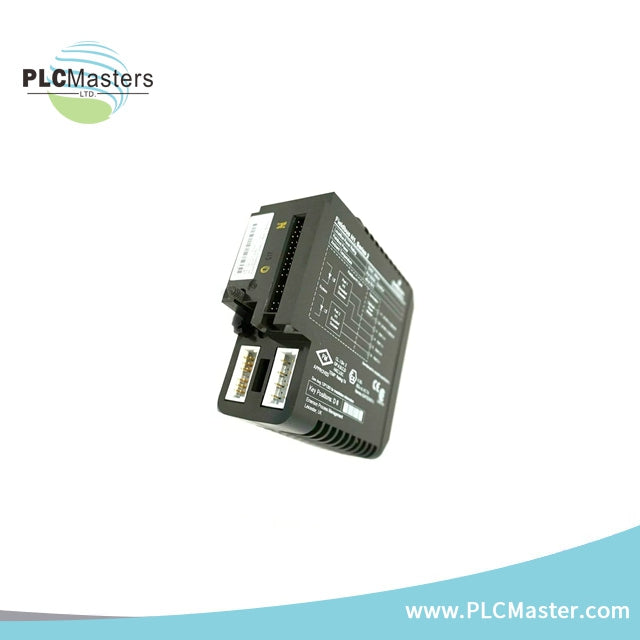

Emerson KJ3242X1-BA1 Fieldbus H1 Card
$250.00
$530.00
What our customer's think
Reviews
Description
Overview
The Emerson KJ3242X1-BA1 is a high-performance Fieldbus H1 interface card, engineered for reliable and efficient connectivity between a DeltaV system and Fieldbus H1 field devices in industrial automation environments.
Technical Specifications
Power Specifications
- Local Bus Power: 12 VDC at 300 mA
- Fieldbus Power: 9 to 32 VDC at 12 mA/Port
Environmental Specifications
- Operating temperature: -40°C to 70°C
- Shock: 10g, ½ sinewave, 11 msec
- Vibration: 1mm peak-to-peak, 2-13.2 Hz; 0.7g, 13.2-150 Hz
- Airborne contaminants: ISA-S71.04-1985 Class G3
- Relative humidity: 5% to 95%, non-condensing
- Ingress protection: IP20
Terminal Block Key Position
- D6
Additional Notes
- Installation: Cannot be removed or inserted while the system is powered unless the area is non-hazardous and only one unit is handled at a time. Non-sparking field circuits must be de-energized before handling. For “nL” installation, an I/O loop assessment must be completed on all energy-limited nodes.
- Maintenance: No user-serviceable parts; disassembly is not recommended.
- Calibration: Not required.
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
