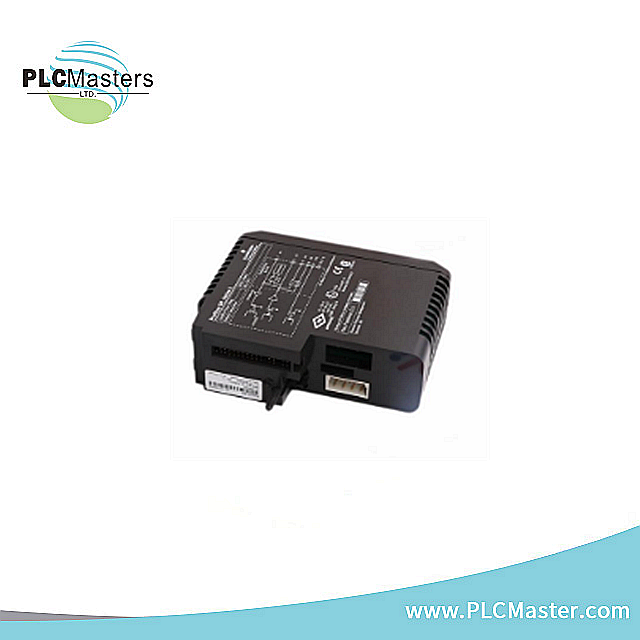

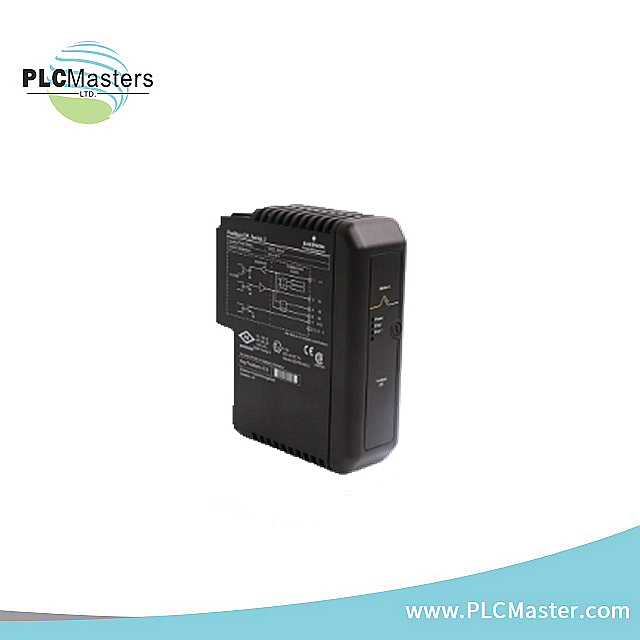

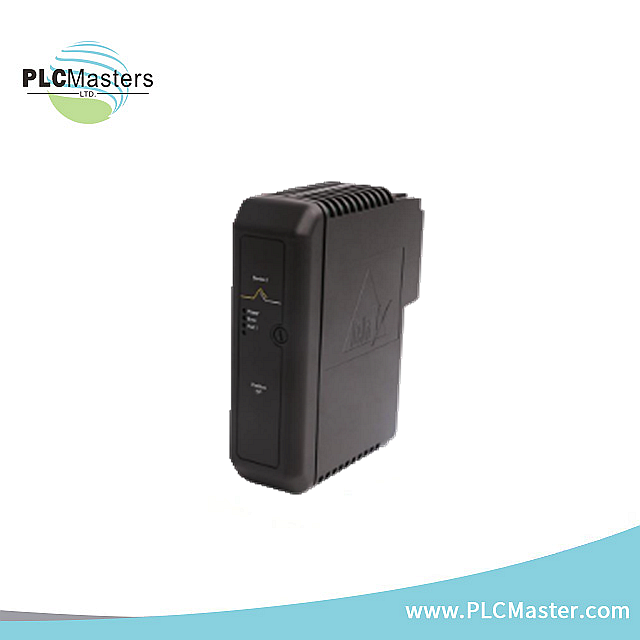

Emerson KJ3243X1-BA1 Series 2 ProfibusDP Card

Emerson KJ3243X1-BA1 Series 2 ProfibusDP Card

  • 1000 In stock
  • Manufacturer: Emerson

  • Product No.: KJ3243X1-BA1

  • Condition: In stock

  • Product Type: Series 2 ProfibusDP Card

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41396734853210,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"KJ3243X1-BA1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Emerson KJ3243X1-BA1 Series 2 ProfibusDP Card","public_title":null,"options":["Default Title"],"price":23000,"weight":200,"compare_at_price":52500,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview
The Emerson KJ3243X1-BA1 is a high-performance Profibus DP interface card, designed for seamless integration between a DeltaV system and Profibus DP field devices in industrial automation settings.

Technical Specifications

Power Specifications

  • LocalBus power rating: 12 VDC at 600 mA
  • Field circuit power per card: None (powered by the Profibus DP network)

Environmental Specifications

  • Operating temperature: -40°C to 70°C
  • Shock: 10g, ½ sinewave, 11 msec
  • Vibration: 1mm peak-to-peak, 5-16 Hz; 0.5g, 16-150 Hz
  • Airborne contaminants: ISA-S71.04-1985 Class G3
  • Relative humidity: 5% to 95%, non-condensing
  • Ingress protection: IP20

Terminal Block Key Position

  • D3

Physical Specifications

  • Weight: 0.44 lbs

Additional Notes

  • Installation: Cannot be removed or inserted while the system is powered.
  • Maintenance: No user-serviceable parts; disassembly is not recommended.
  • Calibration: Not required.

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
