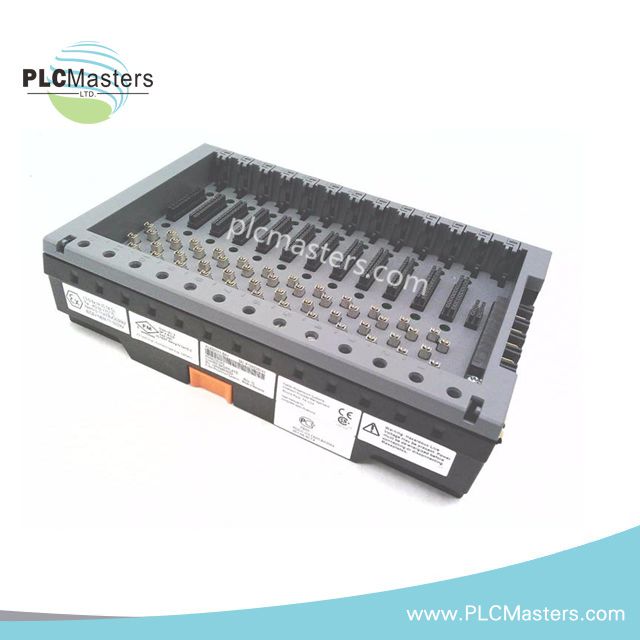

Emerson KL4201X1-BA1 CHARM Baseplate
$152.00
$315.00
What our customer's think
Reviews
Description
Overview
The KL4201X1-BA1 is a CHARM Baseplate designed for hazardous environments. It ensures secure, reliable operation in industrial automation systems. The baseplate efficiently supports power distribution for connected modules.
Technical Specifications
-
Model Number: KL4201X1-BA1
-
Manufacturer: Emerson
-
Type: CHARM Baseplate
-
CHARM Bus Power: 6.3 VDC at 4 A
-
Field Circuit Power: 24 VDC at 10 A
-
Operating Temperature Range: -40°C to +70°C
-
Relative Humidity: 5% to 95% non-condensing
-
Shock Resistance: 10g half-sine wave for 11 ms
-
Vibration Resistance: 1 mm peak to peak from 2 Hz to 13.2 Hz; 0.7g from 13.2 Hz to 150 Hz
Power Specifications
-
CHARM Bus Power Rating: +6.3 VDC at 7.6 A
-
Field Circuit Power Rating: +24 VDC at 8.4 A
Environmental Specifications
-
Ambient Temperature: -40°C to +70°C
-
Shock Resistance: 10g ½ Sinewave for 11 ms
-
Vibration Resistance: 1 mm peak to peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz
-
Airborne Contaminants: ISA-S71.04-1985 Airborne Contaminants Class G3
-
Relative Humidity: 5% to 95% Non-Condensing
Removal and Insertion
Do not remove or insert this unit while system power is energized.
Maintenance and Adjustment
This unit has no user-serviceable parts. Do not disassemble it. Calibration is not required.
Additional Information
-
Part Number: KL4201X1-BA1
-
Category: PLCs/Machine Control
-
Subcategory: PLC Module/Rack
-
Weight: 1.10 lbs
