Description

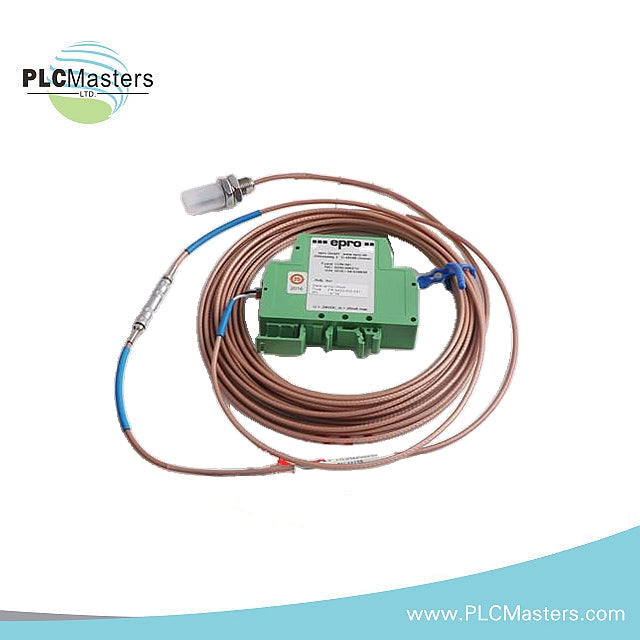

CON041-CN Overview
The Epro CON041-CN is an Eddy Current Signal Converter designed for critical industrial applications. It converts the signals from eddy current sensors into a form that can be easily processed and analyzed, ensuring accurate and reliable data for monitoring and control.
CON041-CN Technical Specifications
-
Dynamic Performance:
- Frequency Range (-3 dB): 0 to 20,000 Hz
- Rise Time: < 15 µs
-
Environmental:
- Operating Temperature Range: -30 to 100°C (-22 to 212°F)
- Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)
- Protection Class: IP20
-
Power & Electrical:
- Supply Voltage Range: -23V to -32V (Output Range -4V to -20V)
- Alternative Supply Voltage Range: -21V to -32V (Output Range -2V to -18V)
-
Physical:
- Housing Material: PA 6.6
- Weight: ~60 grams (2.12 oz)
- Mounting: DIN Rail
- Connections: Screw Terminal (Max. 1.5 mm², Wire-end Sleeves)
PR6423/00R-111-CN Overview
The Epro PR6423/00R-111-CN is an 8mm Eddy Current Sensor designed for critical turbomachinery applications. It measures radial and axial shaft displacement, position, eccentricity, and speed without direct contact.
PR6423/00R-111-CN Technical Specifications
- Measurement Range: 2 mm (80 mils)
- Initial Air Gap: 0.5 mm (20 mils)
- Incremental Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C
- Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C
- Measuring Target: Minimum Shaft Diameter 25 mm (0.79")
- Target Material: Ferromagnetic Steel (42CrMo4)
- Environmental Protection: IP66, IEC 60529
- Operating Temperature Range: -35 to 200°C (-31 to 392°F)
- Weight: Approx. 100 grams (3.53 oz)
