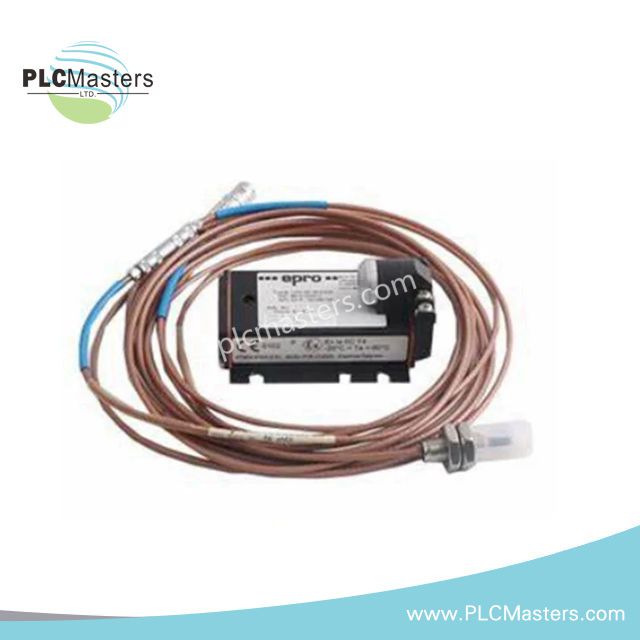

Epro PR6423/003-010-CN+CON021 Eddy Current Sensor
$216.00
$456.00
What our customer's think
Reviews
Description
Overview
The Epro PR6423/003-010-CN+CON021 system combines the PR6423 Eddy Current Displacement Transducer and the CON021 Eddy Current Signal Converter. It is ideal for critical turbomachinery applications, such as steam, gas, and hydro turbines, compressors, pumps, and fans. The system effectively measures radial and axial shaft displacement, position, eccentricity, and speed/key.
PR6423 Eddy Current Displacement Transducer
- Measurement Principle: Non-contact eddy current measurement.
- Measuring Range: ±2.0 mm (±0.08 in).
- Initial Air Gap: 0.5 mm (0.02 in).
- Target Material: Ferromagnetic steel (42CrMo4, AISI/SAE 4140 standard; other materials on request).
- Operating Temperature Range: -35°C to +180°C (-31°F to +356°F), short-term up to +200°C (392°F).
- Protection Class: IP66, IEC 60529.
- Vibration and Shock: 5g at 60 Hz at 25°C (77°F).
- Thread: M10x1 or 3/8” – 24 – UNF – 2A.
- Sensor Material: Stainless steel.
- Cable Length: 1m (3.28 ft) at transducer, 3m (9.84 ft) at extension cable.
- Maximum Cable Temperature: +200°C (392°F).
CON021 Eddy Current Signal Converter
- Measurement Principle: Eddy current signal conversion.
- Frequency Range: 0 to 20,000 Hz.
- Rise Time: <15 µs.
- Operating Temperature Range: -30°C to +100°C (-22°F to +212°F).
- Supply Voltage Range: -23V to -32V (Output Range: -4V to -20V).
- Protection Class: IP20.
- Housing Material: ALMgSi 0.5 F22.
- Mounting: 4 screws M5x20 (Included in Delivery).
- Connections: Screw terminal type (max. 1.5mm², wire-end sleeves).
- Certifications: CE, ATEX, IEC-Ex, CSA.
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
