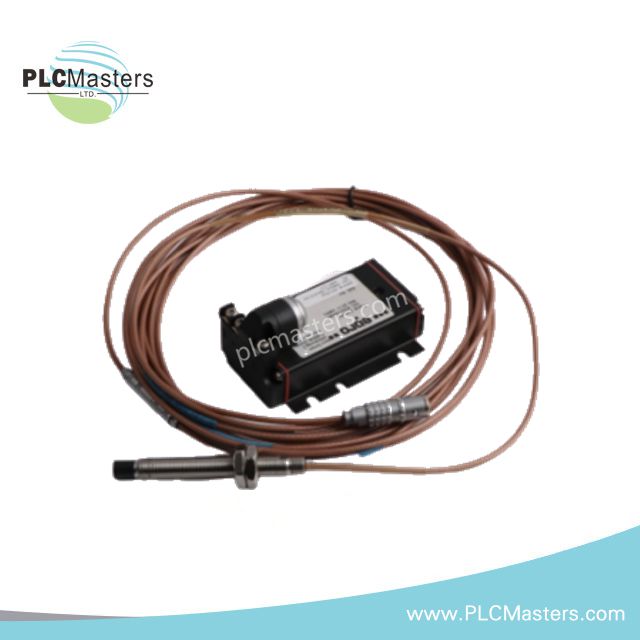

Epro PR6424/000-140+CON021 Eddy Current Displacement Sensor
$233.00
$456.00
What our customer's think
Reviews
Description
Overview
The Epro PR6424/000-140+CON021 is a non-contact eddy current displacement sensor system designed for accurate and reliable monitoring in critical turbomachinery applications. It includes the PR6424 Eddy Current Sensor and the CON021 Signal Converter, both engineered for high precision in measuring shaft displacement, position, eccentricity, and speed. This sensor system is ideal for applications in turbomachinery, automotive, aerospace, and industrial automation.
Technical Specifications
PR6424 Eddy Current Sensor
- Measurement Principle: Non-contact eddy current measurement.
- Sensitivity/Linearity: 4 V/mm (±1.5%).
-
Measuring Range:
- Static: ±2.0 mm (±0.08 in).
- Dynamic: 0 to 1000 µm (0 to 0.039 in).
- Target Material: Ferromagnetic steel (42CrMo4, other materials on request).
- Operating Temperature Range: -35°C to 180°C (-31°F to 356°F).
- Shaft Diameter: ≥80 mm.
- Maximum Surface Speed: 2,500 m/s (98,425 ips).
- Shock and Vibration: 5g at 60 Hz, 25°C (77°F).
- Material: Stainless steel sleeve, PTFE cable.
- Weight: ~200 grams (7.05 oz) including 1m cable.
CON021 Eddy Current Signal Converter
- Measurement Principle: Converts eddy current signals.
- Frequency Range: 0 to 20,000 Hz.
- Rise Time: <15 µs.
- Operating Temperature Range: -30°C to 100°C (-22°F to 212°F).
- Supply Voltage Range: -23V to -32V (output range -4V to -20V).
- Protection Class: IP20.
- Housing Material: ALMgSi 0.5 F22.
- Mounting: 4 screws (M5x20) included.
- Connections: Screw terminal type (max. 1.5mm²).
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
