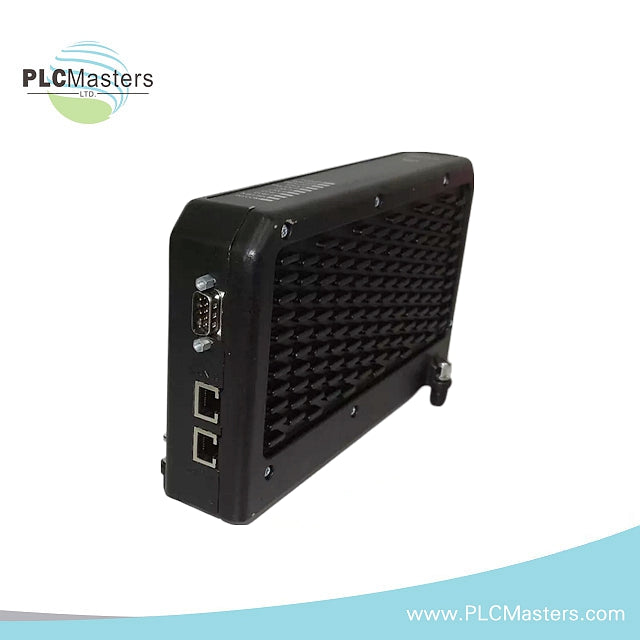

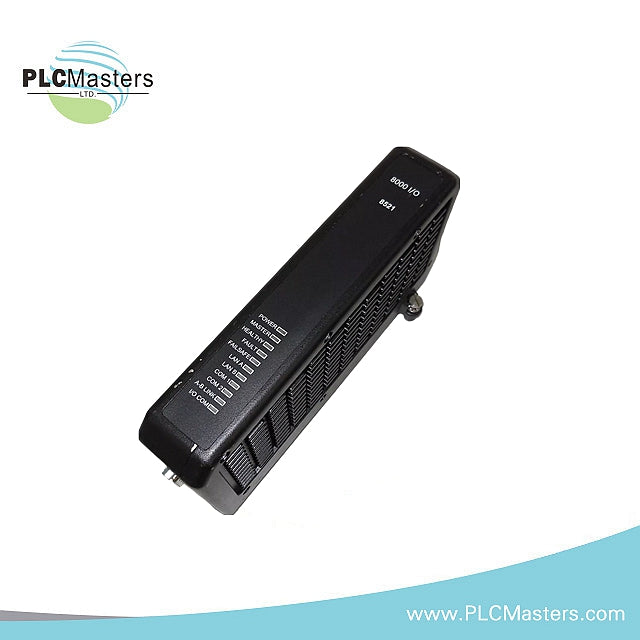

GE Fanuc 8521-RT-DE RTU Controller

GE Fanuc 8521-RT-DE RTU Controller

  • 1000 In stock
  • Manufacturer: GE Fanuc

  • Product No.: 8521-RT-DE

  • Condition: In stock

  • Product Type: RTU Controller

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1350g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41478995607642,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"8521-RT-DE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"GE Fanuc 8521-RT-DE RTU Controller","public_title":null,"options":["Default Title"],"price":22200,"weight":1350,"compare_at_price":46800,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The GE Fanuc 8521-RT-DE is an RTU Controller designed for industrial automation systems. It supports multiple programming languages and is capable of handling up to 64 modules per controller.

Technical Specifications

  • Manufacturer: GE Fanuc

  • Part Number: 8521-RT-DE

  • Product Type: RTU Controller

  • Programming Languages:

    • Ladder Diagram (LD)
    • Structured Text (ST)
    • Instruction List (IL)
    • Sequential Function Chart (SFC)
    • Function Block Diagram (FBD)
    • Flow Chart
  • LAN Communication Protocol: DNP3

  • Number of Controllers per LAN:

    • 24 nodes with simplex controllers
    • 12 nodes with redundant controllers
  • Number of Modules per Controller: 64

  • LAN Connections: 2 RJ45 Connectors per Controller

  • LAN Transmission Medium: 100Base TX or 10BaseT Ethernet

  • LAN Transmission Speed: 10 – 100 Mb/s

  • LAN Isolation: 1500 V dielectric withstand

  • Serial Connections: One male 9-pin D-type on each Controller (second female connector on Carrier)

  • Serial Transmission Medium: RS485 half-duplex

  • Serial Transmission Speed: 1.2 – 115 kb/s

  • Controller Power:

    • Direct connection to Controller: 12 VDC (10.9 – 12.6)
    • Current Consumption: 0.4 A typical, 0.5 A max
    • System Power Consumption: 15 mA (max)
  • Dimensions:

    • Width: 232 mm (9.13 inches)
    • Height: 69 mm (2.72 inches)
    • Depth: 138 mm (5.43 inches)
  • Weight: 1.35 kg (2.98 lbs)

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
