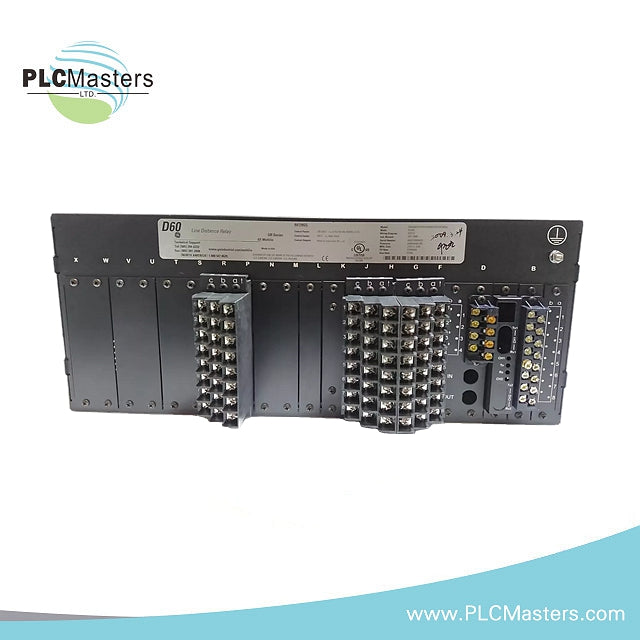

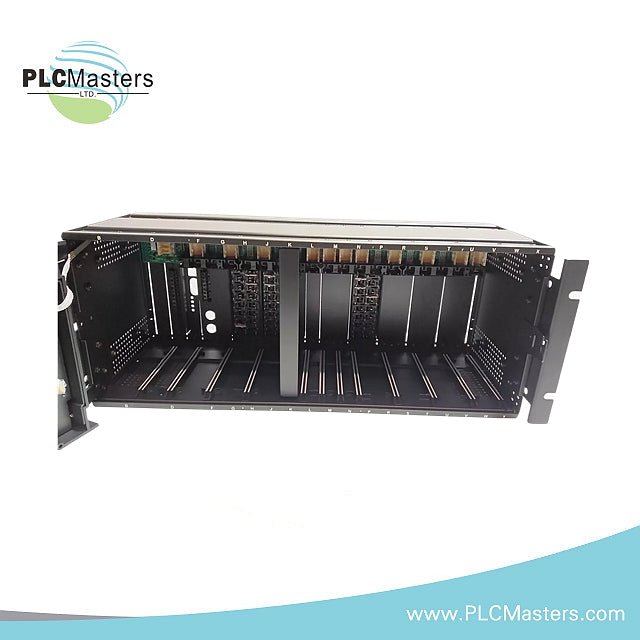

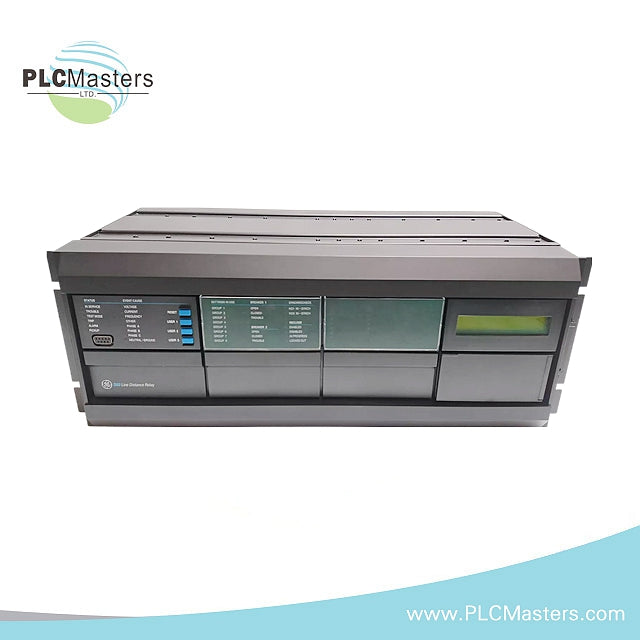

GE Fanuc D60G00HCHF8FH6DMXXP6CU6CWXX Line Distance Protection

GE Fanuc D60G00HCHF8FH6DMXXP6CU6CWXX Line Distance Protection

  • 1000 In stock
  • Manufacturer: GE Fanuc

  • Product No.: D60G00HCHF8FH6DMXXP6CU6CWXX

  • Condition: In stock

  • Product Type: Line Distance Protection

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 6600g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41478997377114,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"D60G00HCHF8FH6DMXXP6CU6CWXX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"GE Fanuc D60G00HCHF8FH6DMXXP6CU6CWXX Line Distance Protection","public_title":null,"options":["Default Title"],"price":24000,"weight":6600,"compare_at_price":48000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The GE Fanuc D60G00HCHF8FH6DMXXP6CU6CWXX is a Line Distance Protection System designed for high-voltage transmission lines and cables.

Technical Specifications

  • Part Number: D60G00HCHF8FH6DMXXP6CU6CWXX

  • Manufacturer: GE Fanuc

  • Product Type: Line Distance Protection System

  • Protection Zones: 5 or 6 zones of quad/mho, phase, and ground distance protection

  • Tripping Applications: Single-pole and three-pole tripping

  • Communication Protocol: DNP3

  • Number of Controllers per LAN:

    • 24 nodes with simplex controllers
    • 12 nodes with redundant controllers
  • Number of Modules per Controller: 64

  • LAN Connections: 2 RJ45 Connectors per Controller

  • LAN Transmission Medium: 100Base TX or 10BaseT Ethernet

  • LAN Transmission Speed: 10 – 100 Mb/s

  • LAN Isolation: 1500 V dielectric withstand

  • Serial Connections: One male 9-pin D-type on each Controller (second female connector on Carrier)

  • Serial Transmission Medium: RS485 half-duplex

  • Serial Transmission Speed: 1.2 – 115 kb/s

  • Controller Power: Direct connection to Controller: 12 VDC (10.9 – 12.6), 0.4 A typical, 0.5 A max

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
