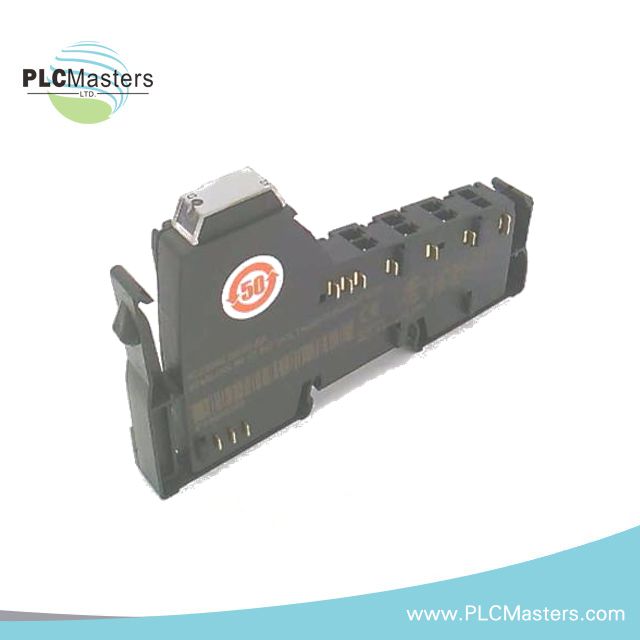

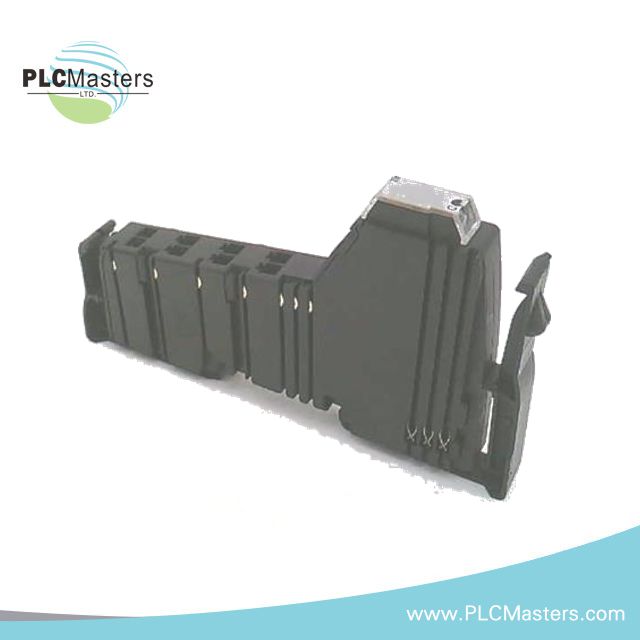

GE Fanuc IC220ALG220 Analog Input Module
$285.00
$456.00
What our customer's think
Reviews
Description
Overview
The IC220ALG220 is a versatile Analog Input Module in the VersaMotion system by GE Fanuc Automation. Designed for industrial applications, it supports both current and voltage input types, with two input channels for flexible configuration. This module is equipped with high-performance features such as a 15-bit resolution and fast update rates for reliable data acquisition. It is designed to connect to sensors using a 2-wire shielded cable and is suitable for integration into remote cabinet sets within automation systems.
Technical Specifications
- Part Number: IC220ALG220
- Category: PLCs/Machine Control
- Subcategory: PLC Module/Rack
- Weight: 0.16 lbs
- Input Channels: 2
-
Input Types:
- 0-20 mA, 2-20 mA, ±20 mA, 0-10 V, ±10 V
- Resolution: 15-bit
-
Input Resistance:
- Voltage: ≥ 220 kΩ
- Current: 50 Ω
- Converter Time: 120 µs
- Update Rate: < 1.5 µs
- Input Filter Limit Frequency: 40 Hz
- Local Bus UL Current Consumption: 45 mA (typical)
- UL Current Consumption: 88 mA
- UANA Current Consumption: 15 mA
- Required Terminal Strip: IC220TBK062 (5 strips)
- Maximum Cable Length: 250 m
-
Housing Dimensions:
- Width: 12.2 mm
- Height: 120 mm
- Depth: 71.5 mm
- Power Supply: Requires external power for sensors
- Degree of Protection: IP 20 (IEC 60529)
- Operating Temperature: -25°C to 55°C
- Storage Temperature: -25°C to 85°C
- Operating Humidity: 75% (average), max 85%
- Class of Protection: Class 3 (VDE 0106, IEC 60536)
- Total Power Consumption: 0.63W
