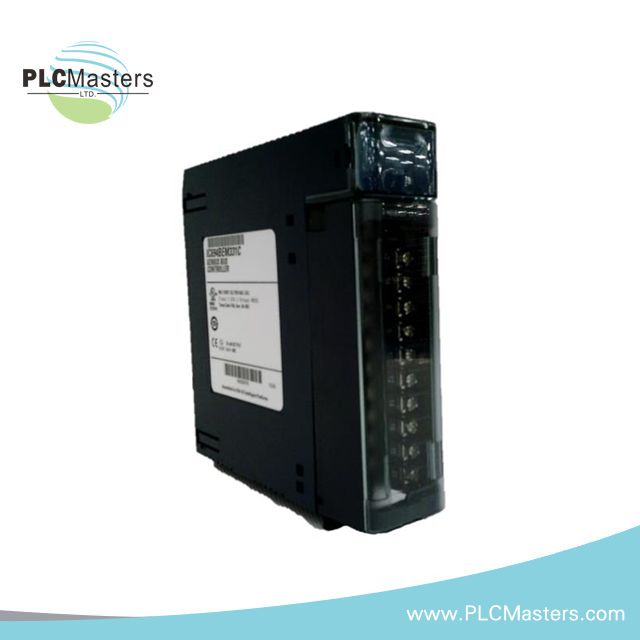

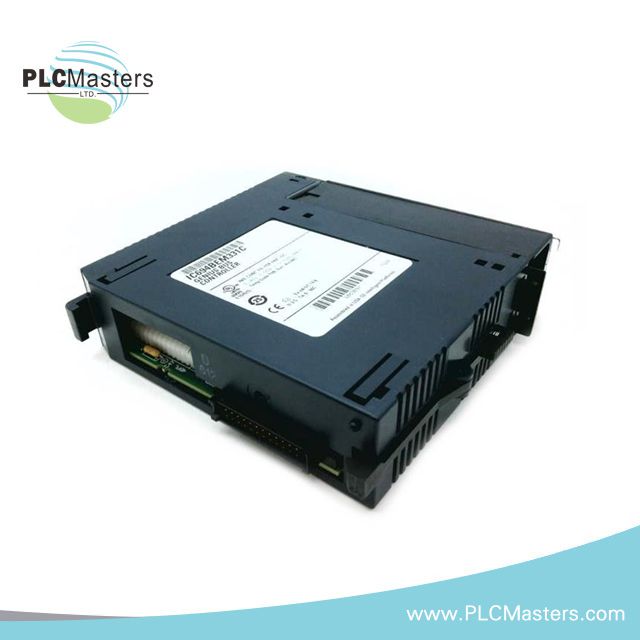

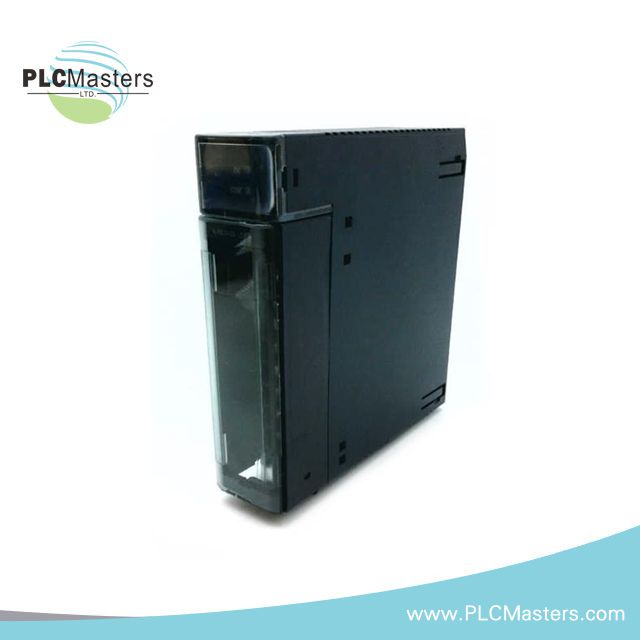

GE Fanuc IC694BEM331 Genius Bus Controller Module
$275.00
$456.00
What our customer's think
Reviews
Description
Overview
The IC694BEM331 is a Genius Bus Controller module designed for use with GE Fanuc's RX3i PACSystems. It enables communication between the RX3i system and other devices on the Genius Bus, such as VersaMax, Genius Block, Genius Hand-Held Monitors (HHM), and remote or distributed I/O systems. The module supports a high-speed data exchange, allowing up to 128 bytes of data to be transferred between the RX3i system and connected Genius-capable devices.
Technical Specifications
- Brand: GE / Emerson
- Product Type: Genius Bus Controller
- Part Number: IC694BEM331
- Protocol: Genius
- Entity Type: Master
- Data Length: 128 bytes per message
-
Data Rates:
- 153.5 Kbaud (standard/extended)
- 76.8 Kbaud
- 38.4 Kbaud (software configurable)
-
Maximum Number of Devices:
- 32 devices at all baud rates except 38.4Kbaud
- 16 devices at 38.4Kbaud
- Bus Type: Daisy-chained bus cable; supports twisted-pair plus shield, Twinax, fiber optic cables, and modems
- Bus Termination: 75, 100, 120, or 150 Ohm resistors at both ends of the cable
-
Maximum Bus Length:
- 7800 feet at 38.4Kbaud
- 4500 feet at 76.8Kbaud
- 3500 feet at 153.6Kbaud (extended)
- 2000 feet at 153.6Kbaud (standard)
- Length depends on cable type
- Current Consumption: 300mA at 5V DC (maximum)
-
Isolation:
- 2000V Hi-Pot isolation
- 1500V transient common-mode rejection
- Communications: Supports global data and datagrams
- Weight: 1.10 lbs
- Backplane Support: No backplane restrictions
- Configuration Software: Proficy Machine Edition
- Required CPU Firmware: 2.9 or higher
- Required Proficy Software: Version 5.00 SP1A
- Bus Cable: Requires bus termination with 75, 100, 120, or 150 Ohm resistors
