GE Fanuc IC694MDL740 Output Module
$215.00
$495.00
What our customer's think
Reviews
Description
Overview

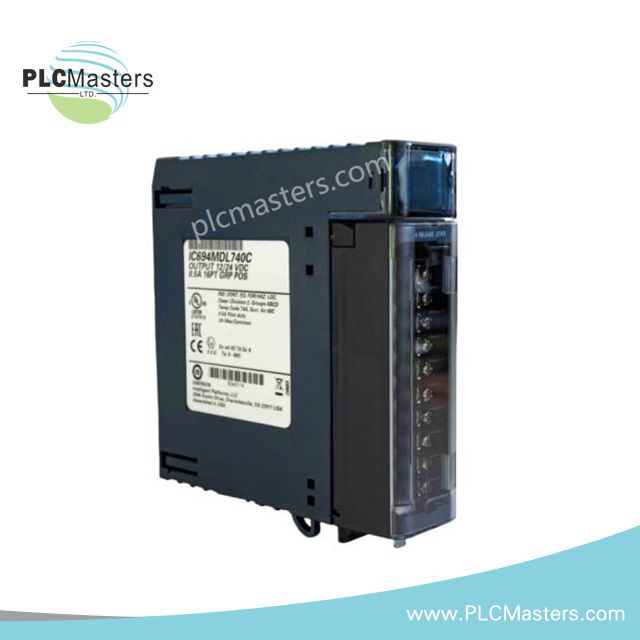

The IC694MDL740 is a positive logic output module from the PACSystem RX3i series by GE Fanuc Automation, now under Emerson Automation. It provides 16 output points organized into two groups of 8. This module delivers a nominal output voltage of 12-24 VDC and is suitable for applications involving motor starters, solenoids, and panel indicators. It is designed for easy integration into the RX3i backplane and provides robust electrical isolation for safe operation in industrial environments.
Technical Specifications
-
Product Type: Output Module
-
Brand: GE Fanuc (now Emerson Automation)
-
Series: PACSystem RX3i
-
Part Number: IC694MDL740
-
Rated Voltage: 12/24 VDC
-
Output Current:
-
0.5 A per point
-
2 A per module
-
Output Voltage Range: 12 to 24 VDC (+20%, -15%)
-
Power Consumption: 110 mA from 5V DC bus on backplane
-
Inrush Current: 4.78 A for 10 ms
-
Output Voltage Drop: 1 V maximum
-
Off-state Leakage: 1 mA maximum
-
On Response Time: Maximum 2 ms
-
Off Response Time: Maximum 2 ms
-
Isolation:
-
Field to Backplane: 250 VAC continuous, optical isolation
-
Frame to Ground: 1500 VAC for 1 minute
-
Group to Group: 250 VAC continuous, 1500 VAC for 1 minute
-
Number of Outputs: 16 (2 groups of 8)
-
Wiring Configuration: Positive Logic
-
LED Indicators: Yes, individual LEDs for each channel and a Fuse Blown status LED
-
Weight: 0.29 kg
