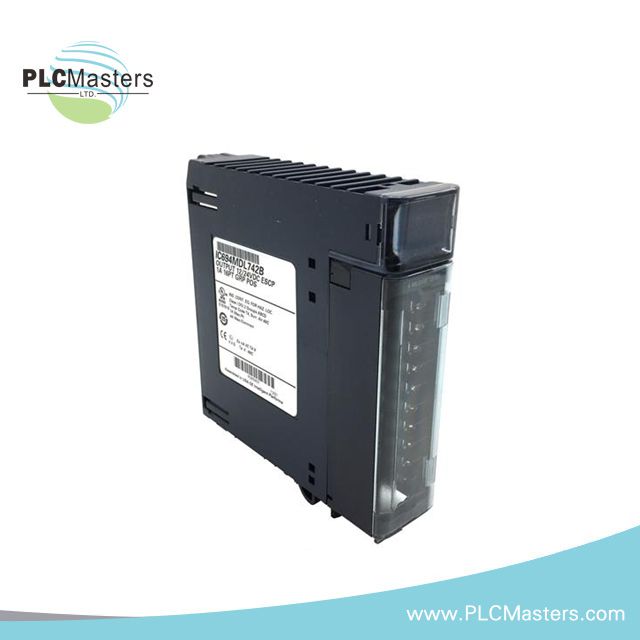

GE Fanuc IC694MDL742 Output Module
$296.00
$456.00
What our customer's think
Reviews
Description
Overview
The GE Fanuc IC694MDL742 is a 16-point output module designed for use with the RX3i PLC system. This module provides two groups of 8 outputs, each operating with negative logic. It is equipped with electronic short-circuit protection (ESCP) for each group, ensuring that any short circuit triggers a protective shutdown of the affected points. The module supports 12 to 24V DC operation and features a hot insertion and removal capability, allowing it to be safely added or removed under power.
Technical Specifications
- Brand: GE Fanuc
- Series: RX3i PacSystem
- Part Number: IC694MDL742
- Module Type: Output module
- Rated Voltage: 12/24V DC
- Output Points: 16 (2 groups of 8 outputs each)
- Output Current: 1 Amp maximum per point
- Power Consumption: 130 mA (when all outputs are on)
- Inrush Current: 5.2 Amps for 10 ms
- Isolation: 250V AC continuous
- Electronic Short-Circuit Protection (ESCP): Yes (for outputs 1–8 and 9–16)

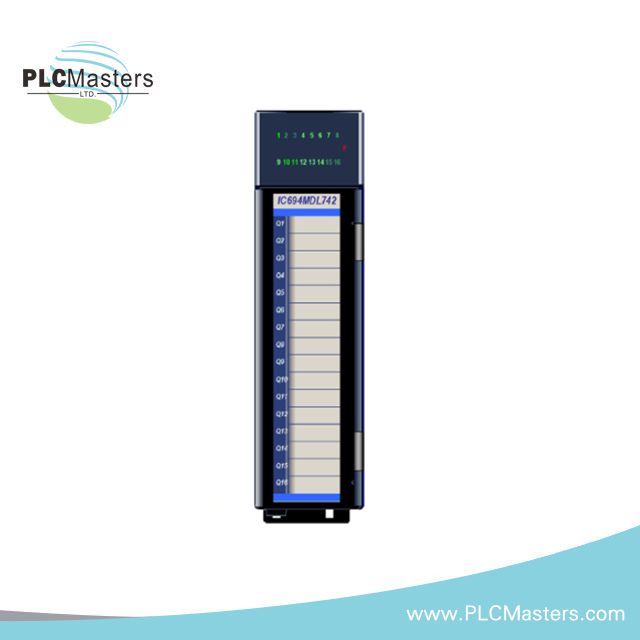

- LED Indicators: Individual LEDs for ON/OFF status of each output
- Hot Insertion and Removal: Yes (under power)
- Field Devices Power: External power required for field devices (e.g., motor starters, solenoids)
- Weight: 0.77 lbs
- Status LED: Red LED (F) indicates when ESCP has been triggered
