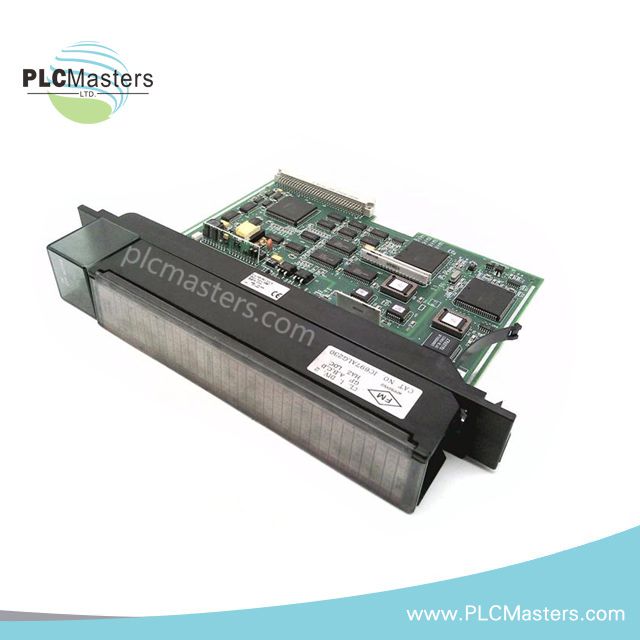

GE Fanuc IC697ALG230 Base Converter Module

Overview

​The IC697ALG230 is a base converter module for the Series 90-70 PLC platform. Initially manufactured by GE Fanuc Automation, it is now under Emerson Automation.

Technical Specifications

• Brand: GE Fanuc (Formerly); Emerson Automation (Currently)

• Series: Series 90-70

• Part Number: IC697ALG230

• Input Channels: 8 differential inputs (configurable for voltage or current signals)

• Signal Types:

• Voltage: -10VDC to +10VDC

• Current: 4-20 mA

• Input Ranges:

• Voltage: -10V to +10V

• Current: 0.0 mA to 22.5 mA (default: 4-20 mA)

• Resolution: 16 bits (Voltage: 0.3125 mV, Current: 0.25 µA)

• Calibration:

• Voltage: ±0.01% of full scale, ±0.02% of value

• Current: ±0.05% of full scale, ±0.1% of value

• Factory set at 10V ± 2 mV

• Linearity: ±0.02% of full scale (over entire range)

• Update Rate: 2.4 ms to 2.8 ms

• Power Consumption: 0.8A (4 watts) at +5VDC

• Operating Temperature: 0 to 60°C

• Input Impedance:

• Voltage: >10MΩ

• Current: 250Ω

• Common Mode Rejection: >70dB at 60Hz

• Isolation: 1500VAC for 1 minute

• Number of Terminals: 40 pins

• Conversion Time: 200µs per channel

• Weight: 1.76 lbs
