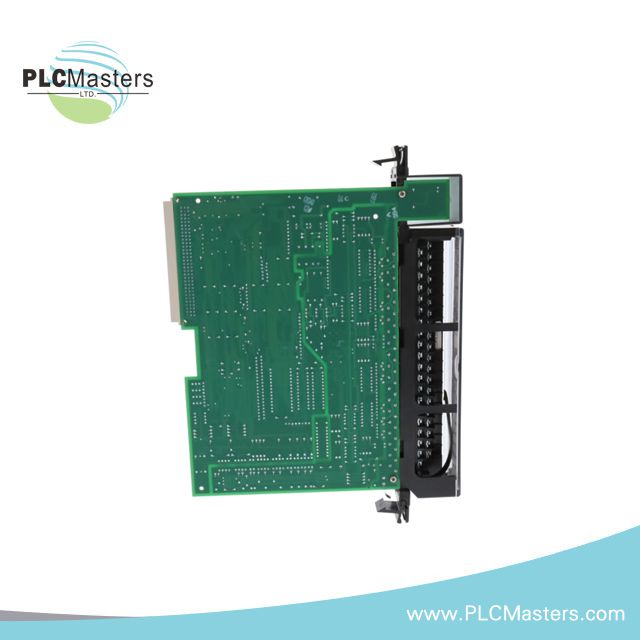

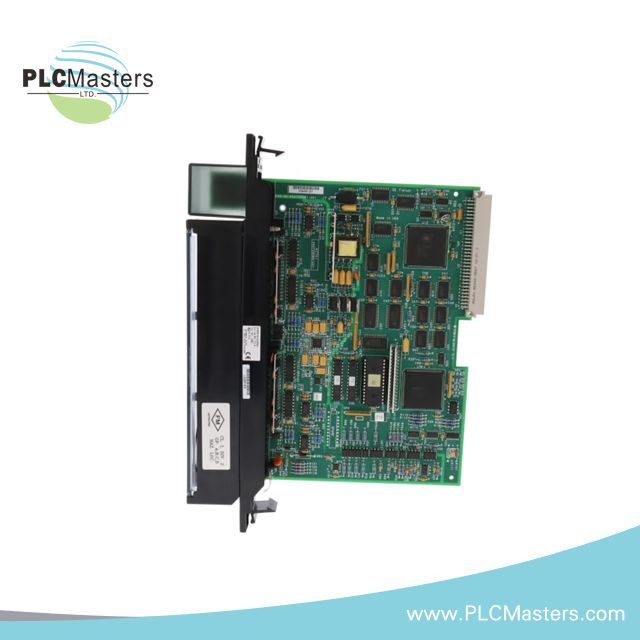

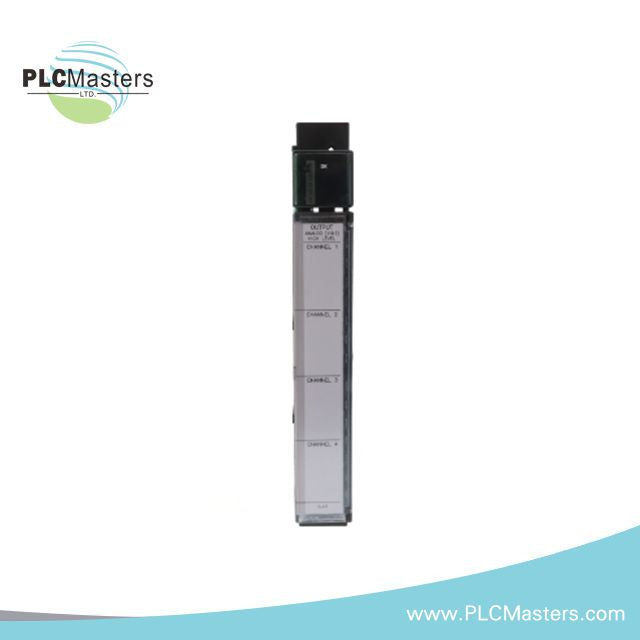

GE Fanuc IC697ALG320 Analog Output Module
$294.00
$456.00
What our customer's think
Reviews
Description
Overview
The IC697ALG320 is a high-performance 4-channel analog output module designed for use with GE Fanuc's Series 90-70 Programmable Logic Controllers (PLCs). This module allows users to generate both voltage and current output signals. Each channel is independently configurable, offering flexibility in diverse industrial applications. The module features a high-resolution 16-bit DAC with 14-bit monotonicity for precise analog signal conversion.
Technical Specifications of IC697ALG320
General Specifications
- Manufacturer: GE Fanuc (Now part of Emerson Automation)
- Series: 90-70
- Part Number: IC697ALG320
- Category: Analog Output Module
- Power Consumption: 1.66 A (8.3 watts) at 5VDC; additional 150 mA required from user supply for current output
- Operating Voltage Range: 10VDC to 30VDC (24VDC typical)
- Module Slot Width: 1-slot
- Weight: 1.94 lbs
Output Configuration
- Number of Output Channels: 4
-
Output Signal Types:
- Current: 0-20 mA / 4-20 mA
- Voltage: -10VDC to +10VDC
-
Resolution: 16 bits with 14-bit monotonicity
- Voltage: 312.5 microvolts per LSB step
- Current: 0.5 microamps per LSB step
Performance
- Conversion Rate: 2.0 ms for all analog output channels
- Voltage Output Accuracy: ±2.5 mV at full scale (10V)
-
Current Output Accuracy:
- 4.0 mA ±5 µA
- 20 mA ±5 µA at full scale
-
Temperature Coefficient:
- Voltage: 25 PPM per °C
- Current: 50 PPM per °C
Load and Protection
-
Voltage Operation:
- Minimum Resistive Load: 2000 ohms
- Maximum Capacitive Load: 1000 picofarads
-
Current Operation:
- Maximum Resistive Load: 700 ohms
- Maximum Capacitive Load: 1.0 microfarad
- Maximum Inductive Load: 250 mH
- Short-Circuit Protection: Continuous short-circuit protection with auto recovery once fault is cleared
Installation and Configuration
-
Max Modules per Rack:
- CPU Rack: 7 modules
- Expansion Rack: 8 modules
- Maximum Output Channels: 252 channels (with multiple modules)
- Calibration: Factory-calibrated with data stored in EEPROM
- User Scaling: Supports user-defined scaling for different units and applications
Diagnostics and Error Detection
-
Diagnostic Features:
- Over-range and under-range detection
- Open-wire detection
- Configuration error detection
- Module health monitoring
