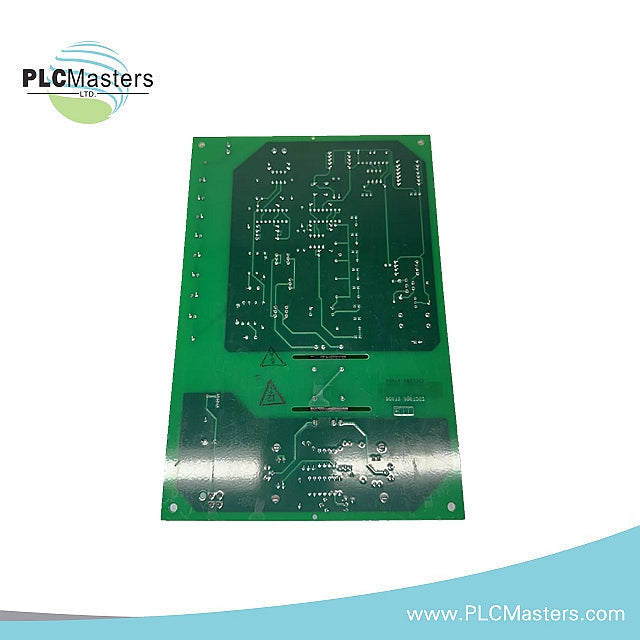

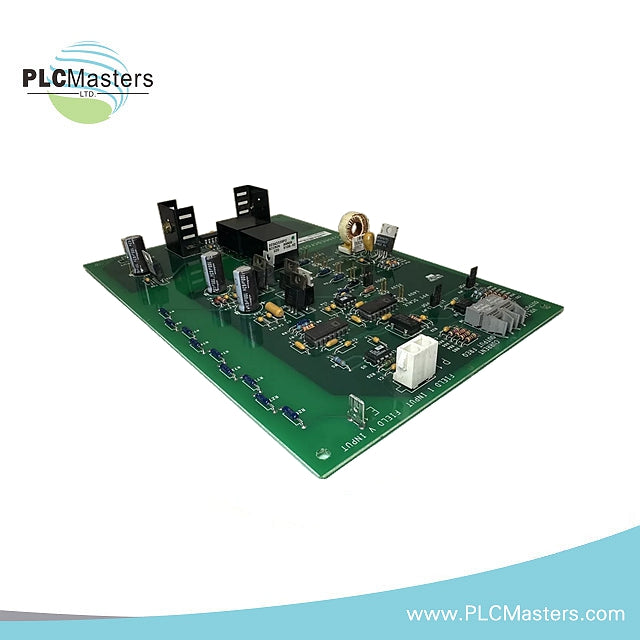

GE Fanuc IS200EDCFG1AED Exciter Direct Current Feedback Board

GE Fanuc IS200EDCFG1AED Exciter Direct Current Feedback Board

  • 1000 In stock
  • Manufacturer: GE Fanuc

  • Product No.: IS200EDCFG1AED

  • Condition: In stock

  • Product Type: Exciter Direct Current Feedback Board

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 600g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41485293224026,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"IS200EDCFG1AED","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"GE Fanuc IS200EDCFG1AED Exciter Direct Current Feedback Board","public_title":null,"options":["Default Title"],"price":40000,"weight":600,"compare_at_price":63000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The IS200EDCFG1AED is an Exciter Direct Current (DC) Feedback Board designed for the Mark VI series. It measures field current and field voltage at the SCR bridge and interfaces with the EISB board in the control panel.

Technical Specifications

  • Manufacturer: GE Fanuc

  • Model Number: IS200EDCFG1AED

  • Product Type: Feedback Board

  • Inputs:

    • Field Current Measurement
    • Field Voltage Measurement
    • Voltage Isolation: Achieved through fiber-optic link
    • Fiber-Optic Types: Hard-clad silica (up to 300 feet/90 meters) or plastic (up to 33 feet/10 meters)

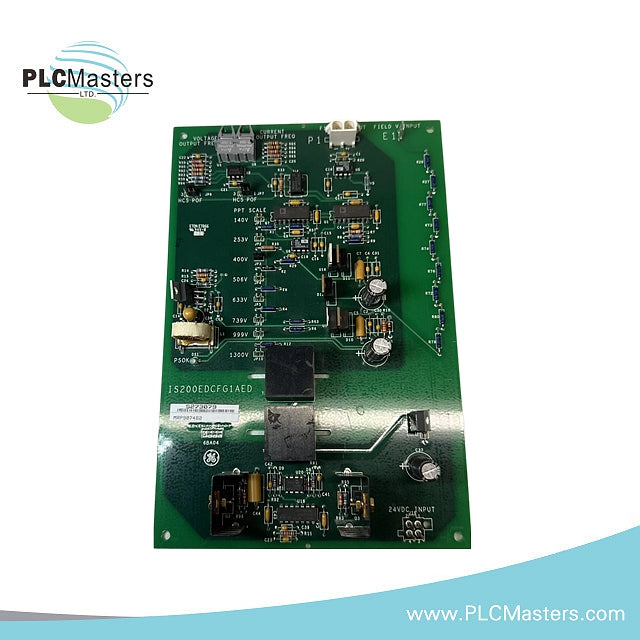

    • Field Voltage Feedback Circuit: 7 selector settings to scale down the bridge voltage
  • Components:

    • Relays: 2
    • Coil Inductor: 1
    • Integrated Circuits: 6
    • Transistors: Multiple
    • Heat Sinks: 2
  • Plugs:

    • P1: 2-position plug
    • Input Plug: 4-position plug
    • Main Connector: J16 (2 pins)
      • Pin 1: +24 VDC input to DC-DC converter
      • Pin 2: 24 VDC common

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
