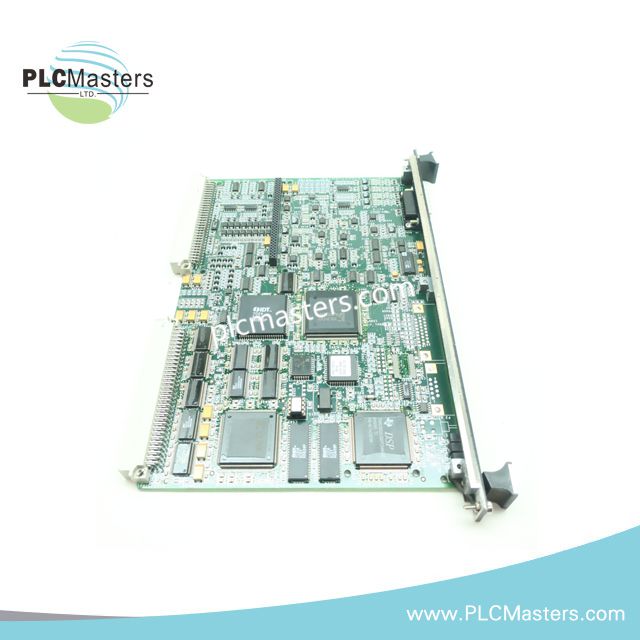

GE Fanuc IS200VTURH1BAC Primary Turbine Protection Board

GE Fanuc IS200VTURH1BAC Primary Turbine Protection Board

  • 1000 In stock
  • Manufacturer: GE Fanuc

  • Product No.: IS200VTURH1BAC

  • Condition: In stock

  • Product Type: Primary Turbine Protection Board

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41828359503962,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"IS200VTURH1BAC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"GE Fanuc IS200VTURH1BAC Primary Turbine Protection Board","public_title":null,"options":["Default Title"],"price":17300,"weight":300,"compare_at_price":42000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The IS200VTURH1BAC is a Primary Turbine Protection Board used in GE Mark VI Turbine Control Systems. It ensures safe and efficient turbine operation by monitoring turbine shaft voltage, current, and speed rate inputs.

Technical Specifications

  • Model Number: IS200VTURH1BAC

  • Type: Primary Turbine Protection Board

  • Series: GE Mark VI Turbine Control System

  • Supported Terminal Boards: TRPG, TRPL, TREG, TRPS

  • MPU Pulse Rate Range: 2 Hz to 20 kHz

  • MPU Pulse Rate Accuracy: ±0.05% of reading

  • Number of Trip Solenoids: 3

  • Contact Voltage Sensing: 20 V DC (HI) / 6 V DC (LO)

  • Installation: Rack-mounted in turbine control systems

  • Voltage: 24 V DC

  • Operating Temperature: -40 to 70 °C

  • Humidity: 5% to 95% (non-condensing)

  • Dimensions: 2.5 cm x 10.8 cm x 12.7 cm

  • Weight: 0.3 kg

Features

Minimum Order Quantity (MOQ)

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
