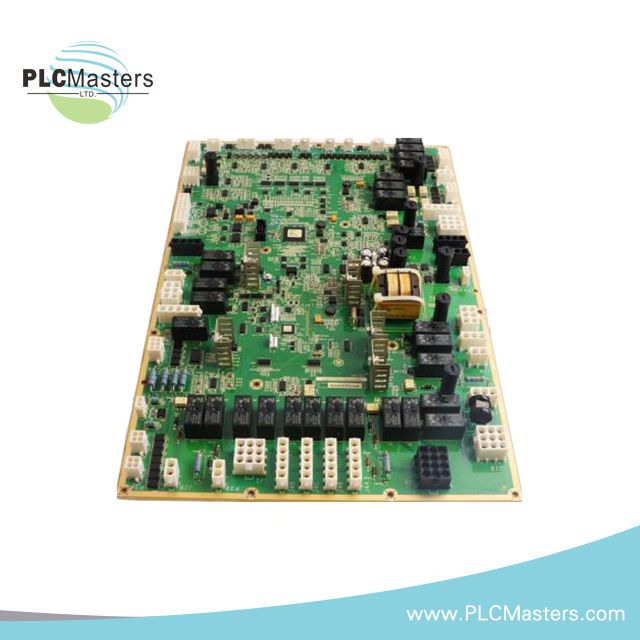

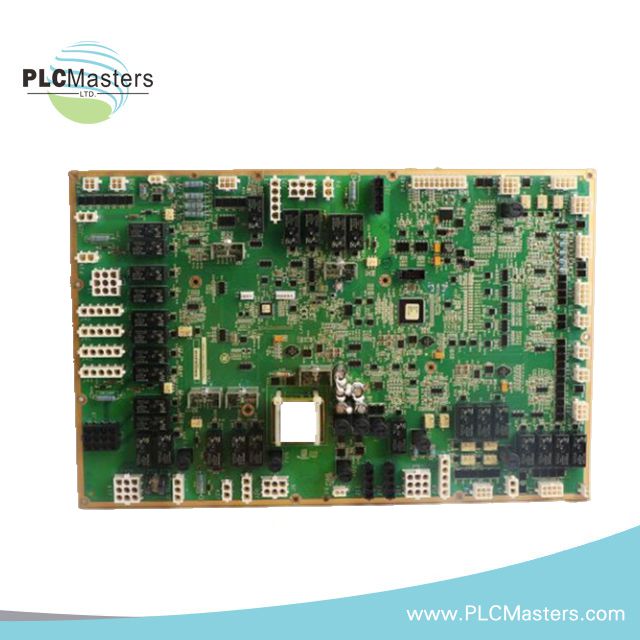

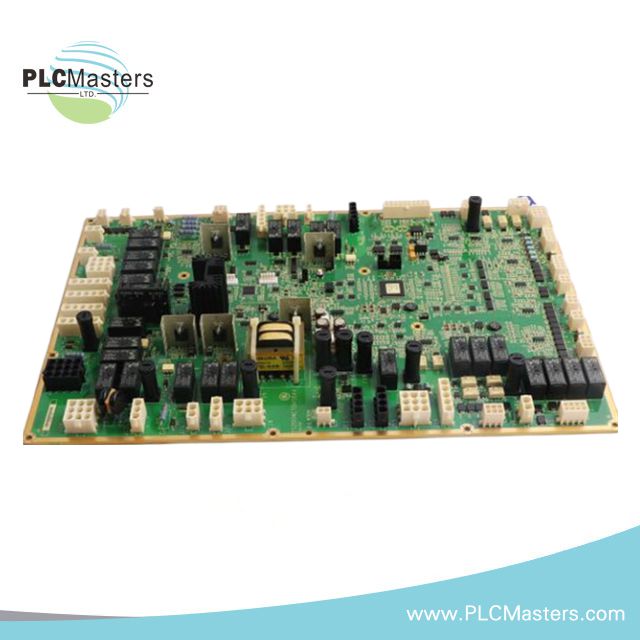

GE Fanuc IS200WETAH1AEC Board
$200.00
$499.00
What our customer's think
Reviews
Description
Overview
The IS200WETAH1AEC is a large board component designed for the GE Mark VI turbine management system, an advanced platform for gas and steam turbine control. Launched in the 1990s as part of GE's Speedtronic series, this board integrates sophisticated diagnostic and control functionalities, ensuring reliable turbine operation.
Technical Specifications
-
Model: IS200WETAH1AEC
-
System: GE Mark VI (Speedtronic)
-
Power Supply:
- 125 VDC Battery System
- 120/240 VAC Source (rectified to 125 VDC)
-
Fuses: 7 fuses for circuit protection
-
Transformers:
- 4 transformers total
- 3 located side-by-side
- 1 on the opposite side
-
Terminal Strips: 6 terminal strips for connection
-
Test Points: Over 25 test points for diagnostics
-
Jumper Switches: Several for configuration purposes
-
Components:
- Coil inductors
- Resistors
- Relays
- Diodes
- Capacitors
- Integrated circuits
-
Voltage Regulators:
- Over 100 voltage regulators
- Positioned along three edges of the board for efficient voltage regulation
-
Connectors:
- Over 45 plugs or connectors
- Types include:
- Conductive connectors
- Vertical pin connectors (male)
- Female plugs (ranging from 2 to 20 positions)
- Multiple connectors marked with similar reference designators (e.g., P29A, P29B, P29C)
