GE Fanuc IS220PAICH2B Analog I/O Module

Overview

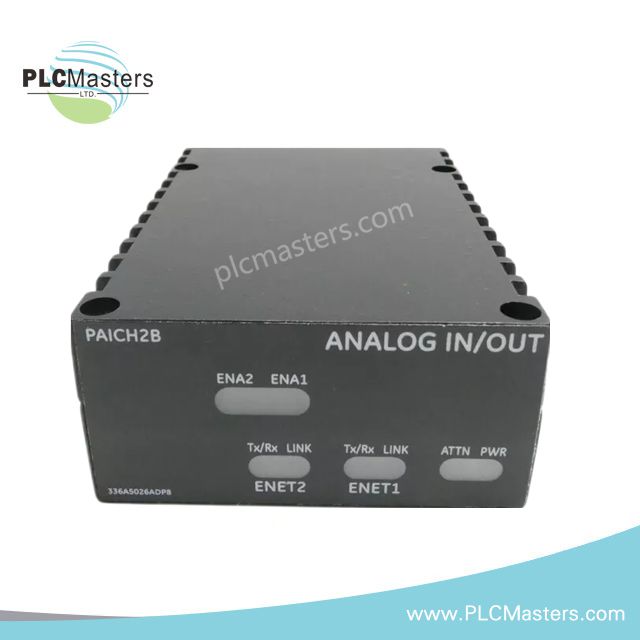

The GE Fanuc IS220PAICH2B is an Analog Input/Output (I/O) module designed for use with the GE Speedtronic Mark VIe control system for gas turbines. It serves as an interface between one or two Ethernet I/O networks and an input terminal board.

Technical Specifications

General

• Model: IS220PAICH2B

• Type: Analog I/O Module

• Application: Industrial automation and turbine control

Inputs

• Total Inputs: Up to 10 analog inputs

• Input 1–8: Configurable as ±5 V, ±10 V, or 4–20 mA

• Input 9–10: Configurable as ±1 mA or 4–20 mA

Outputs

• Total Outputs: 2 current loop outputs

• Output Range: 0–20 mA

• Output 1: Supports up to 200 mA

Power Supply

• Input Voltage: +5 V DC

• Current Requirement: 6 A

• Voltage Range: 18–32 V DC

Communication

• Network Ports: Dual RJ-45 Ethernet connectors

• Board Interface: DC-37 pin connector

Diagnostics

• Status Monitoring: Visual indicator LEDs

Mounting

• Mounting Type: DIN-rail compatible

Environmental Conditions

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

Physical Properties

• Dimensions: 12.2 x 8.2 x 6 cm

• Weight: 0.38 kg
