GE Fanuc | PQM II | PQMII | Power Quality Meter

GE Fanuc | PQM II | PQMII | Power Quality Meter

  • 1000 In stock
  • Manufacturer: GE Fanuc

  • Product No.: PQM II

  • Condition: In stock

  • Product Type: Power Quality Meter

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 5500g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41476978835546,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"PQM II","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"GE Fanuc | PQM II | PQMII | Power Quality Meter","public_title":null,"options":["Default Title"],"price":21000,"weight":5500,"compare_at_price":38000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

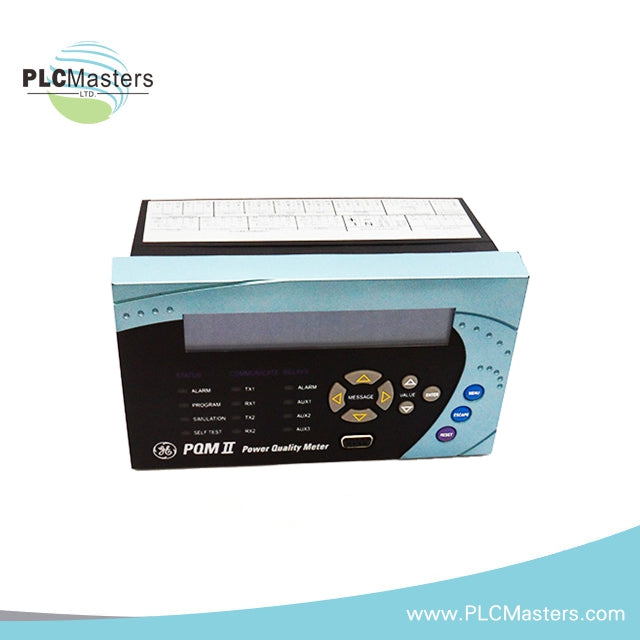

The PQM II is a versatile power quality meter and control device designed for continuous monitoring of three-phase systems. It offers detailed metering for current, voltage, real and reactive power, energy usage, power factor, and frequency. The unit is equipped with programmable setpoints and assignable output relays, allowing it to provide advanced control functions such as alarms for over/under current or voltage, load shedding, and power factor correction. The PQM II is also suitable for integration into DCA or SCADA systems, enhancing its utility in industrial and commercial applications.

Technical Specifications

  • Mounting versatility: Keypad with large 40-character display
  • Assignable outputs: 4 relays for triggering alarms or control actions
  • Compatibility: Compatible with MultiNet Serial to Ethernet Converter
  • Upgradeability: Flash upgradeable
  • Communication ports: Front RS232 serial, rear RS485, Ethernet (via MultiNet)
  • Harmonic analysis: Through the 63rd harmonic with THD and TIF
  • Event recording: 150 events, data logger capable of storing 98,000 events
  • Waveform capture: Supported, along with Voltage Disturbance Recorder (VDR)
  • Monitoring inputs: Ia, Ib, Ic, In, Va, Vb, Vc, Vab, Vbc, Vca
  • Protocols: Supports various communication protocols and Ethernet connectivity
  • Software: EnerVista for setup and monitoring

Applications

  • Monitoring: Distribution feeders, transformers, generators, capacitor banks, motors
  • Control and protection: Medium and low voltage systems
  • Power quality analysis: For commercial, industrial, and utility sectors
  • Load management: Demand load shedding, power factor control, and capacitor correction

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
