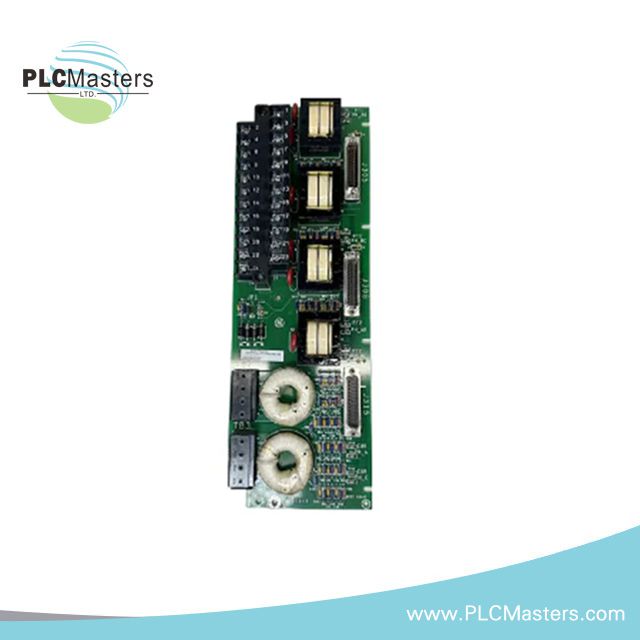

GE IS200EBRGH2AEB Exciter Bridge Interface Board
$274.00
$565.00
What our customer's think
Reviews
Description
Overview
The GE IS200EBRGH2AEB is an advanced Exciter Bridge Interface Board used in GE EX2100e excitation control systems. It acts as a critical interface between the control system and the power bridge (SCR or thyristor bridge), enabling precise excitation regulation. It supports communication with various bridge components, ensuring efficient operation and fault detection. This board plays a key role in managing the power bridge's I/O terminals, which include fan starters, status feedback, and fault detection for over-temperature and blown fuses.
Technical Specifications
- Product Type: Exciter Bridge Interface Board
- Manufacturer: General Electric
- Series: EX2100e
- Technology: Surface Mount
-
Power Supply:
- 125 VDC from station battery
- 115/220 VAC 50/60 Hz (one or two supplies)
- Compatibility: Supports SCR devices and bridge architectures, including simplex, warm backup, and parallel bridge converters.
- Thyristor Systems Supported: 42, 52, and 77 mm
- Operating Temperature: 0 to 60°C
- Size: 10.2 x 5.1 cm
- Weight: 2 lbs
-
LED Indicators: Visual feedback for:
- Alarm conditions
- Bridge temperature
- Currents
- Fan rotation
- Fault conditions
- Gate power supply
- Line filter
- Output firing
