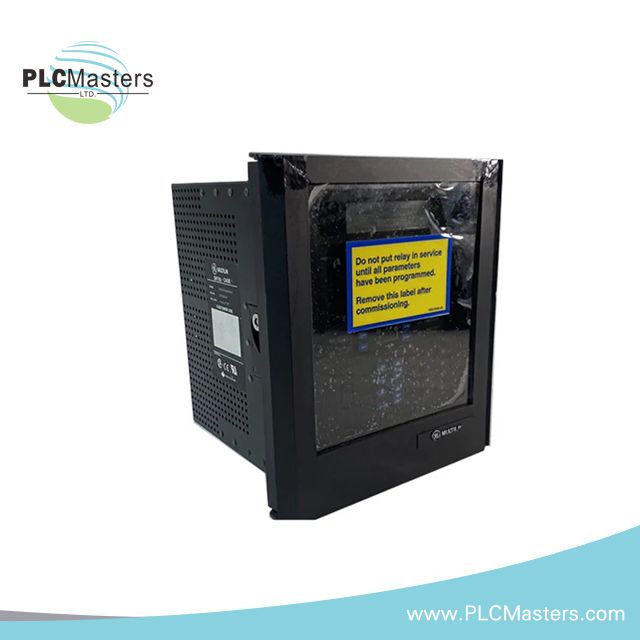

GE Multilin 760-P5-G5-D5-HI-AI-R Feeder Protection Relay
$361.00
$499.00
What our customer's think
Reviews
Description
Overview
The GE Multilin 760-P5-G5-D5-HI-AI-R is a feeder protection relay designed for managing and protecting distribution feeders. It is part of the 750/760 Feeder Protection System, offering various protection functions such as overcurrent, earth fault, and directional overcurrent protection. The relay is built for long-term reliability, requiring minimal maintenance, and supports flexible communication protocols. It also features a simulation mode and playback capability, allowing for testing and troubleshooting without impacting the live system.
Technical Specifications
- Model Number: 760-P5-G5-D5-HI-AI-R
- Manufacturer: GE Multilin
- Series: 750/760 Feeder Management Relays
- Software: EnerVista 750/760
- Manual Number: GEK-106471N
- Control Power: 70-265VAC / 88-300VDC (High Voltage)
- Current Inputs: 5A
- Analog Outputs: 0-1mA
- Polarizing/Sensitive Ground Current Input: Polarizing
- Phase Current Input: 5A
- Ground Current Input: 5A Zero Sequence
- Sensitive Current Input: 5A
-
Voltage Range:
- DC: 80-300V DC
- AC: 70-265V AC
- Frequency: 48-62 Hz
- Analog Output: 8 x 0-1mA
- Analog Input Impedance: 375 Ω ± 10%
- Communications: RS232, RS422, RS485 ports
- Operating Environment Humidity: Up to 90% non-condensing
- Overload Withstand: 1 second at 80 x rated current, continuous at 3 x rated current
- Pollution Degree: II
- Relay Dimensions: 18 cm W x 16.5 cm L x 21.5 cm H
- Weight: 18 lbs
